Запчасти Case IH 1680 (8-068) - HEADER LIFT CYLINDER ASSEMBLY (07) - HYDRAULICS

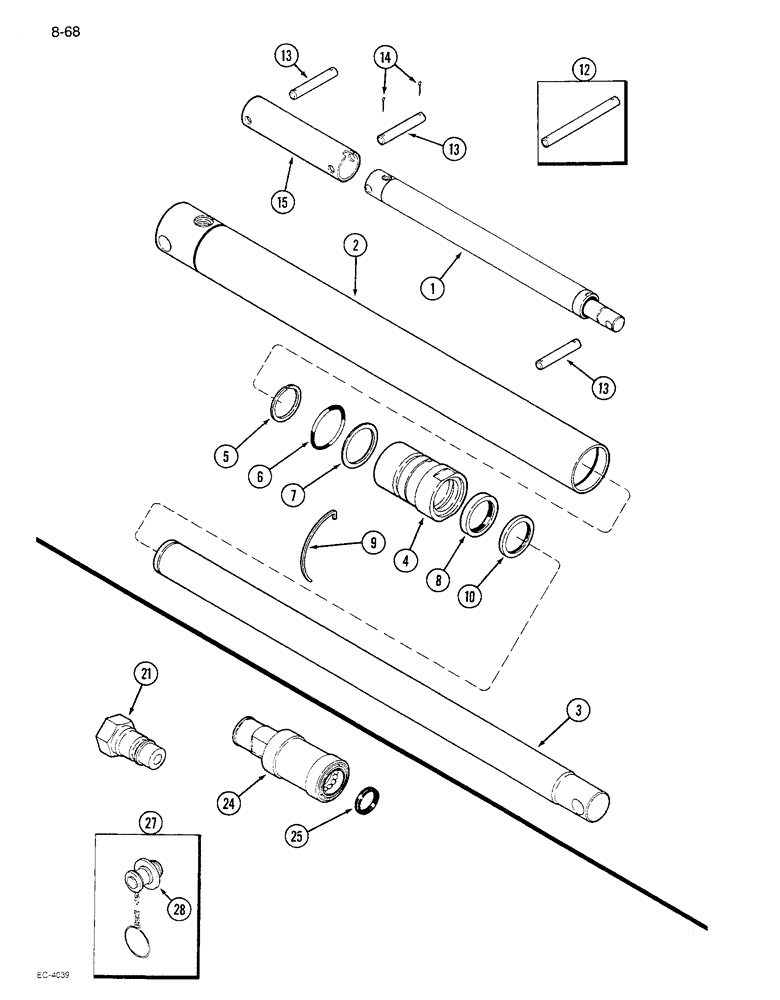

Схема запчастей Case IH 1680 - (8-068) - HEADER LIFT CYLINDER ASSEMBLY (07) - HYDRAULICS
28
13
15
21
5
9
2
27
6
8
14
7
25
13
13
12
3
1
4
10
24

Артикул

Название

Примечание

Количество

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - lift, header

2шт.

1

127779C94R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (S/N JJC0045689 & AFTER) (NORTH AMERICA), Assembly, lift, header (1/86-12/92)

2шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 127779C94)

1шт.

3

127780C2

ROD

- piston

1шт.

4

142568C2

HEAD

- front

1шт.

224718C92

SEAL KIT

SERVICE KIT - cylinder, Includes: Ref. 5 - 10

1шт.

5

545710R1

STOP

RING - stop, piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16 inch Class 5

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

195822C1

PIN,25.4mm OD x 228.6mm L

- header lift cylinder, 1 x 9 inch, mounting

2шт.

Used on combines with third lift cylinder.

1шт.

13

573762R1

PIN,25.4mm OD x 130.97mm L

- header lift cylinder, 1 x 5-5/32 inch, mounting

1шт.

14

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 1-3/4", header lift cylinder mounting

1шт.

15

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- lift cylinder extension, header mounting

1шт.

Used on combines with rock trap.

1шт.

21

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY , 7/8 NF, Self-Sealing, Male, hydraulic

1шт.

24

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - hydraulic female, 7/8 inch thread, hydraulic

1шт.

25

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing, hydraulic couplings

1шт.

27

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, hydraulic

1шт.

28

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- coupling plug, hydraulic

1шт.

Выбрано товаров: 24
