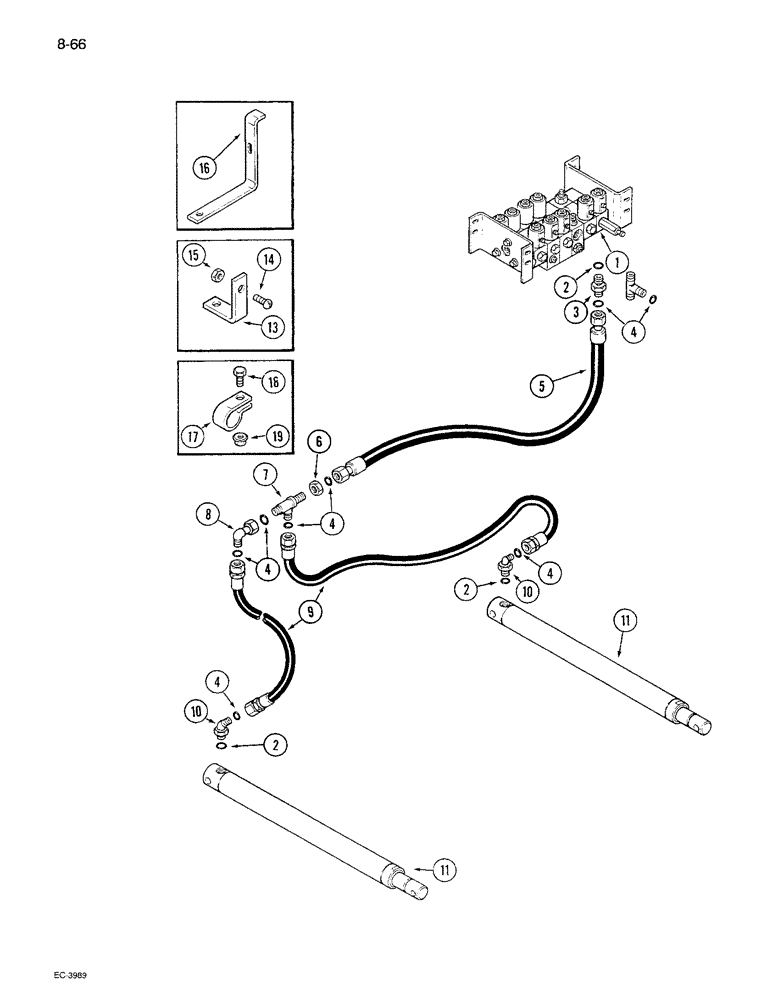

Запчасти Case IH 1680 (8-066) - HEADER LIFT SYSTEM, W/O THIRD LIFT CYLINDER, P.I.N. JJC0117060 & AFTER (07) - HYDRAULICS

1

1542679C1

VALVE

ASSEMBLY - header lift (See Figure 8-88)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

3

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 1/2 inch adjustable (Use with accumulators)

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

5

1989666C1

HOSE

ASSEMBLY - header cylinder supply

1шт.

6

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

7

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

- 13/16 bulkhead

1шт.

8

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

- 90 degree, 1/2 inch

1шт.

9

1989667C1

HOSE

ASSEMBLY - header lift cylinder

2шт.

10

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

45°, 13/16"-16 x 3/4"-16. Adj, ORFS

2шт.

11

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - hydraulic (See Figure 8-68)

2шт.

11

127779C94R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (S/N JJC0045689 & AFTER) (NORTH AMERICA), Assembly, hydraulic (1/86-12/92)

2шт.

11

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

13

187834C1

ANGLE

SUPPORT - lift tube, upper

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- 5/16 x 3/4 inch slotted truss head

1шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

16

1989653C1

SUPPORT

- header cylinder fitting

1шт.

17

470375C1

CLAMP,1", Insul, 3/8" Bolt

-

2шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.
