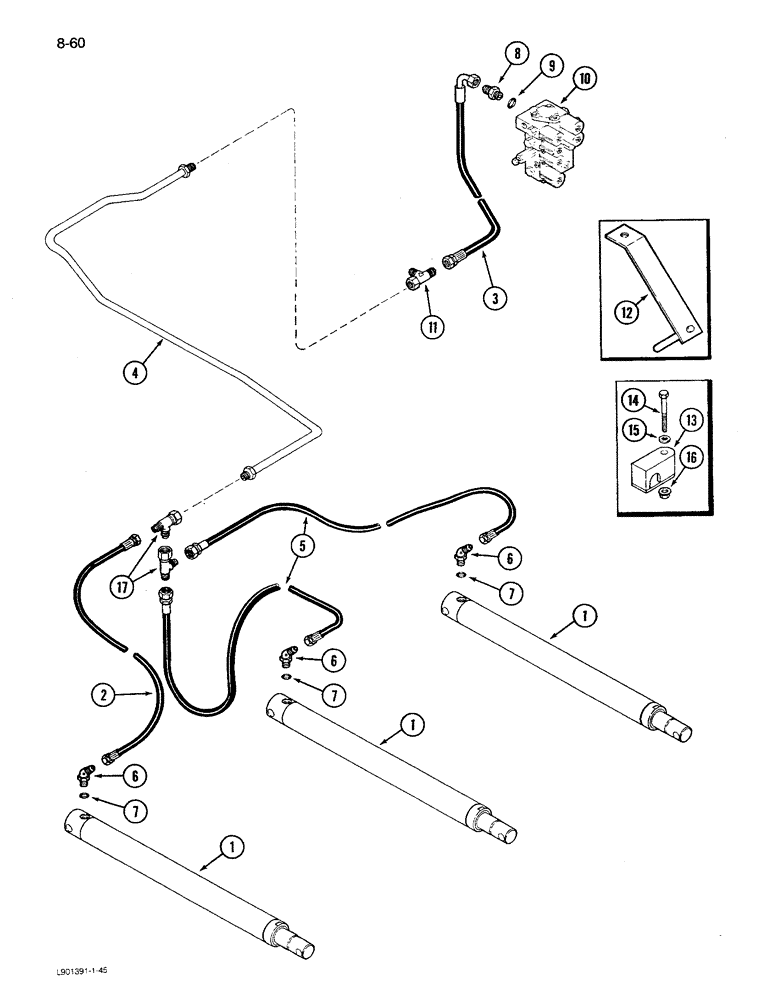

Запчасти Case IH 1680 (8-060) - HEADER LIFT CYLINDER SYSTEM, W/THIRD LIFT CYLINDER, PRIOR TO P.I.N. JJC0117060 (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Figure 8-68)

3шт.

2

1310709C1

HOSE

ASSEMBLY - header lift cylinder, 3/8 x 45 inch

1шт.

2

813610C1

HOSE

- header lift cylinder, 50 inch (Without rock trap)

1шт.

3

90875C1

HYDRAULIC HOSE

HOSE ASSEMBLY - header lift, 29 inch

1шт.

4

1979996C2

HYD TUBE

TUBE - header lift cylinder

1шт.

5

1345115C1

HOSE

- header lift cylinder, 27 inch

2шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch (Without rock trap)

2шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 3/4-16 inch thread

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - short, 7/8-14 inch thread

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-70)

1шт.

11

REF

INSTRUCTION

TEE - used with accumulator attachment (See Figure 8-148)

1шт.

12

173143C2

SUPPORT

- header lift hose

1шт.

13

183822C1

CLAMP

- tube, single, 5/8 inch OD tube

3шт.

14

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

15

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

3шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

2шт.
