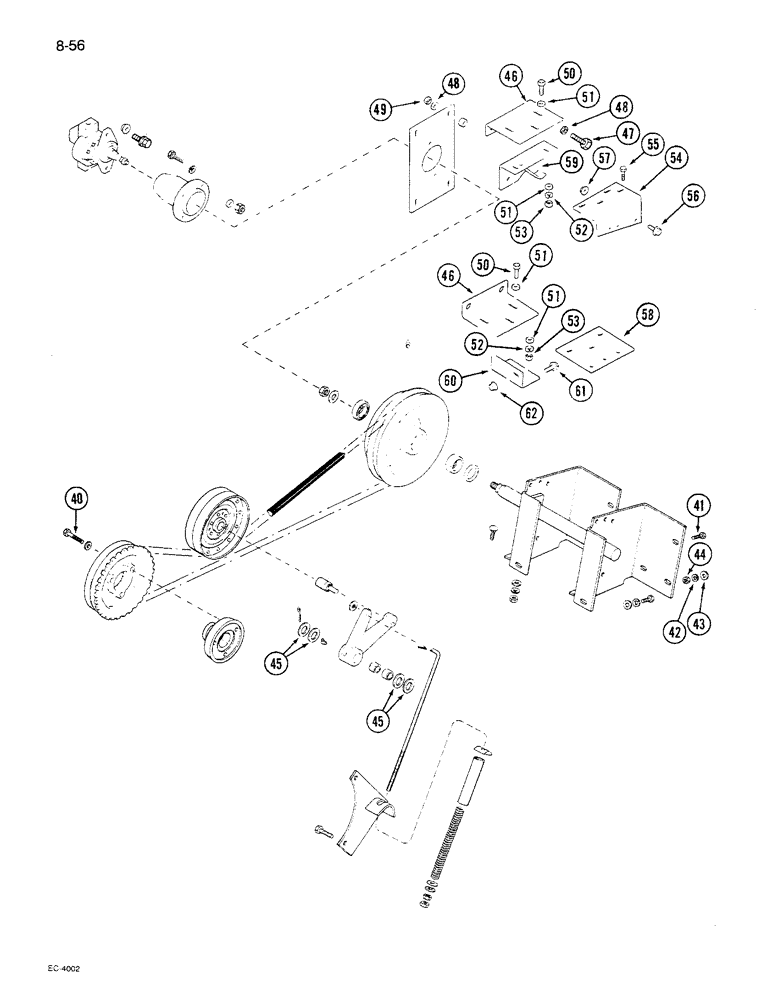

Запчасти Case IH 1680 (8-056) - AUXILIARY PUMP MOUNTING & DRIVE, HEADER PUMP & REEL, P.I.N. JJC0117060 & AFTER (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
40
426-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8
- hex, 1/2 NC x 2-1/2 inch, Grade 8
3шт.
41
535789R1
BOLT,Hex Serr, 5/16" - 18 x 1 1/4"
- hex flange 5/16 NC x 1-1/4 inch
4шт.
43
396-41034
WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk
- flat, 11/32 x 1 x 3/32 inch
4шт.
44
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
4шт.
45
495-81073
WASHER,1-1/32" x 1-3/4" x .060" Thk
- flat, 1-1/32 x 1-3/4 x 1/16 inch
1шт.
46
1541732C1
SUPPORT ASSY.
SUPPORT - isomount, auxiliary pump
2шт.
47
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- hex, 1/2 NC x 2-1/2 inch
4шт.
48
895-81164
WASHER
- 17/32 x 1-3/4 x 5/32 inch
8шт.
49
231-4118
LOCK NUT,1/2"-13, GB
NUT - lock, 1/2 inch
4шт.
50
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch
6шт.
51
495-81135
WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk
- flat, 13/32 x 1 x 7/64"
12шт.
52
492-11038
LOCK WASHER,3/8"
6шт.
53
425-106
NUT,3/8"-16, Cl 5
6шт.
54
1541734C1
SUPPORT
- upper, isomount
1шт.
55
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
2шт.
56
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
2шт.
57
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
2шт.
58
1541735C1
SUPPORT
- lower, isomount
1шт.
59
1541742C1
SUPPORT ASSY.
SUPPORT - belt guide, upper
1шт.
60
1541741C1
SUPPORT
- belt guide, lower
1шт.
61
458-616
BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5
- hex, 3/8 x 1 inch
1шт.
62
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex lock, 3/8 inch NC
1шт.
1543179C1
SEAL KIT
KIT - seal, pump (Not shown)
1шт.
1543180C1
PACKAGE, REPAIR
KIT - seal, relief valve (Not shown)
1шт.
1543181C1
PACKAGE, REPAIR
KIT - flow control valve (Not shown)
1шт.
1543182C1
PUMP, HYDRAULIC
KIT - front pump (Not shown)
1шт.
1543183C1
PACKAGE, REPAIR
KIT - rear pump (Not shown)
1шт.
1543196C1
SEAL KIT
KIT - shaft seal (Not shown)
1шт.
Выбрано товаров: 29
