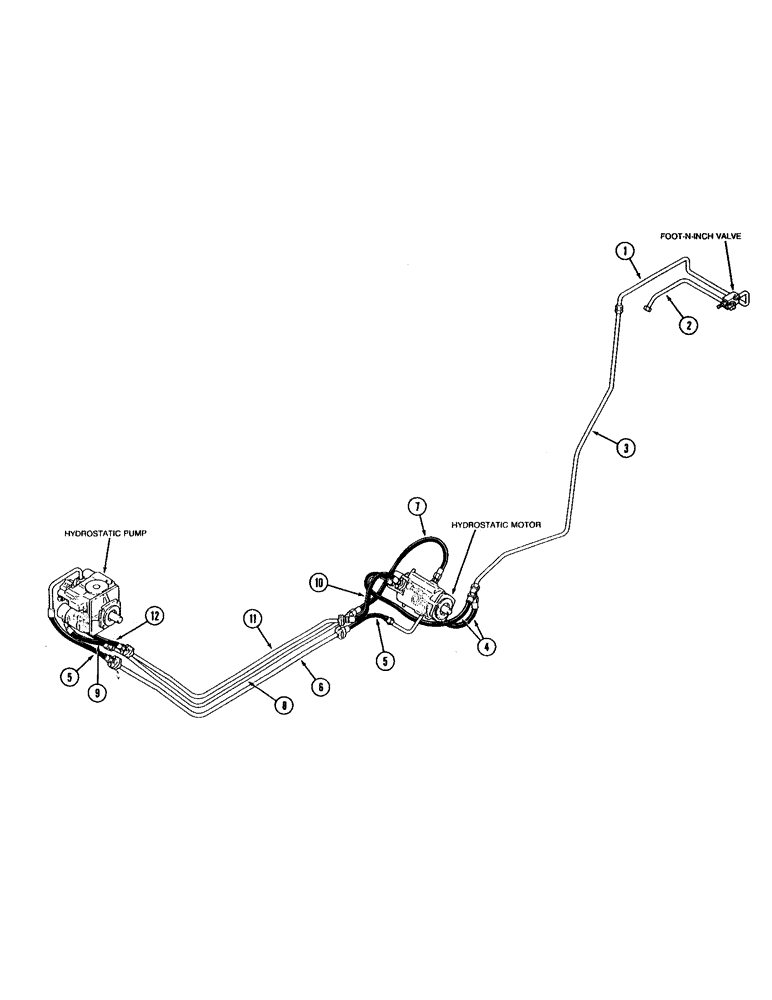

Запчасти Case IH 1680 (1-018) - PICTORIAL INDEX, SINGLE SPEED PROPULSION CIRCUIT (00) - PICTORIAL INDEX
11
9
3
5
10
12
1
8
6
5
7
2
4
№
Артикул
Название
Примечание
Количество
1
Foot-N-Inch Upper Tube, Figure 6-20
1шт.
2
Foot-N-Inch Valve Return Tube, Figure 6-20
1шт.
3
Foot-N-Inch Lower Tube, Figure 6-20
1шт.
4
Foot-N-Inch Hose, 10 inch, Figure 6-20
1шт.
5
Reverse Pressure Hose Assembly, Figure 6-12
1шт.
6
Reverse Pressure Tube Assembly, Figure 6-12
1шт.
7
Case Drain Lower Hose Assembly, Figure 6-12
1шт.
8
Case Drain Tube Assembly, Figure 6-12
1шт.
9
Case Drain Lower Hose Assembly, Figure 6-12
1шт.
10
Forward Lower Pressure Hose Assembly, Figure 6-12
1шт.
11
Forward Pressure Tube Assembly, Figure 6-12
1шт.
12
Forward Upper Pressure Hose Assembly, Figure 6-12
1шт.
Выбрано товаров: 12
