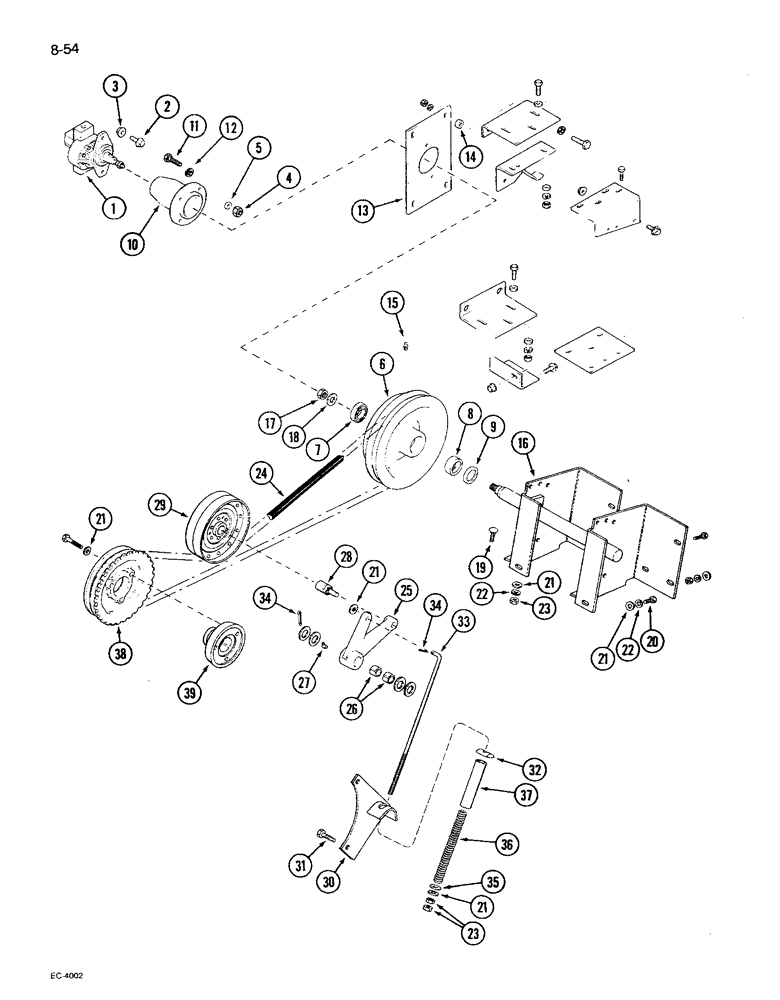

Запчасти Case IH 1680 (8-054) - AUXILIARY PUMP MOUNTING & DRIVE, HEADER PUMP & REEL, P.I.N. JJC0117060 & AFTER (07) - HYDRAULICS

1

1994653C2

PUMP

ASSEMBLY, Dual

1шт.

1994653C2R

REMAN-HYD PUMP

1680 S/N JJC0045689 & Aft.Auxiliary Pump Mounting & Drive, Header Pump &Reel, P.I.N. JJC0117060 & AFTER (1/86-12/92)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex flange, 1/2 NC x 1-1/2 inch

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch

1шт.

6

1347377C1

PULLEY ASSY.

PULLEY ASSEMBLY - auxiliary pump drive, Includes: Ref. 7 - 9

1шт.

7

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING ASSEMBLY - ball

1шт.

8

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

BEARING ASSEMBLY - pulley

1шт.

9

466176R92

SEAL

- pulley

1шт.

10

1541612C1

HUB

- hydraulic pump

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

1541733C1

LARGE PLATE

SUPPORT - auxiliary pump

1шт.

14

R29799

SHOCK ABSORBER

ABSORBER - rubber

4шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube, 1/4 inch straight

1шт.

16

191228C3

BRACKET

- auxiliary drive rear

1шт.

17

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

18

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

- flat, 25/32 x 1-3/4 x 7/64 inch

1шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - hex, 1/2 NC x 1-1/2 inch

2шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

10шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

24

1347358C1

V-BELT,2551.05 mm L, 2 Ribs

Auxiliary Pump Drive 2551.05 mm L, 2 Ribs

1шт.

25

1330517C1

LEVER

ASSEMBLY - auxiliary pump drive, Includes: Ref. 26

1шт.

The larger hole of this lever is attached to Pin P/N 195439C2 on the separator drive housing illustrated on Figure 6-2.

1шт.

26

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

- lever

2шт.

27

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - 45 degree self tapping, 1/4-28 inch

1шт.

28

274844R91

BEARING ASSY,30mm OD x 73.66mm L

- idler pulley

1шт.

29

192865C1

PULLEY

- idler, 8 inch OD

1шт.

30

194729C2

SUPPORT

- pump drive pivot

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

194652C1

PIVOT

BAR - drive pivot

1шт.

33

191823C1

ROD

- auxiliary drive jackshaft

1шт.

34

432-1216

COTTER PIN,3/16" x 1"

1шт.

35

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

36

V368

SPRING

- drive rod

1шт.

37

1989254C1

SPACER

- drive rod

1шт.

38

1330488C1

PULLEY

- auxiliary pump drive, 8.85 inch OD

1шт.

39

196482C2

HUB

- drive pulley

1шт.

1543182C2

PACKAGE, REPAIR

pump, header

1шт.

1543183C1

PACKAGE, REPAIR

pump, drive, reel

1шт.
