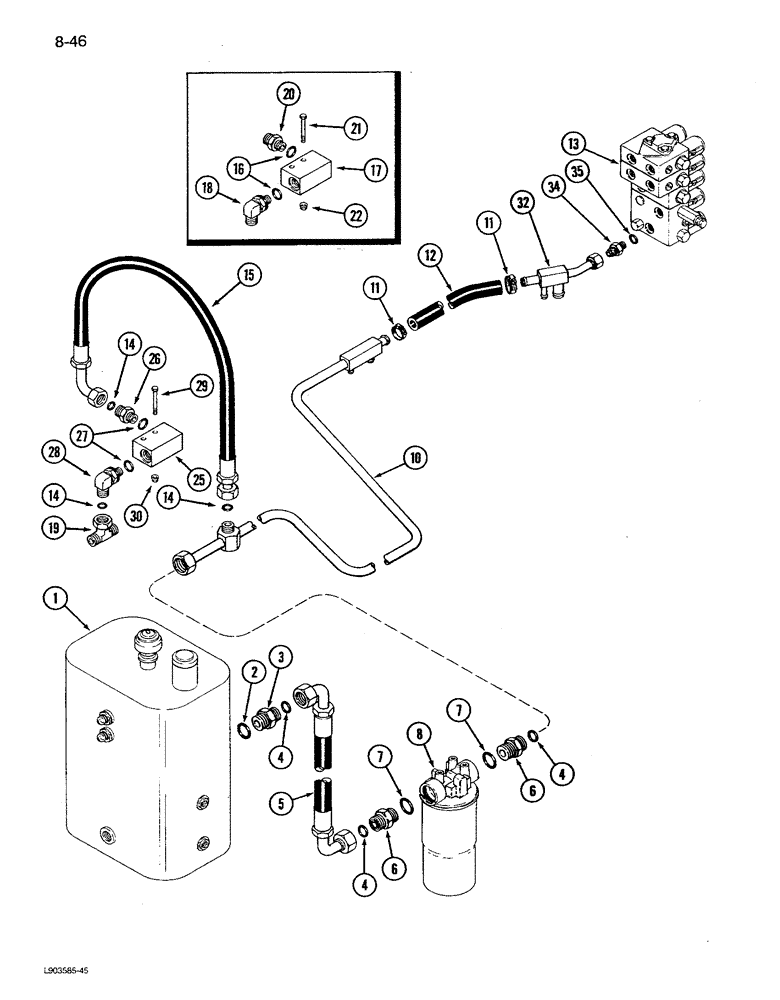

Запчасти Case IH 1680 (8-046) - HEADER LIFT RETURN SYSTEM, P.I.N. JJC0047918 THROUGH JJC0117059 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-4)

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

3

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

CONNECTOR - straight, 1-7/16-12 x 1-5/16 inch thread

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

5

1980044C1

HOSE

ASSEMBLY - return, Serial Range: filter-reservoir

1шт.

6

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

CONNECTOR - straight, 1-7/16-12 x 1-5/8-12 inch thread

2шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

8

REF

INSTRUCTION

FILTER ASSEMBLY - auxiliary return (See Figure 8-18)

1шт.

10

1347154C1

HYD TUBE,1 mm OD, 2090 mm Length

TUBE ASSEMBLY - valve stack return

1шт.

11

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

2шт.

12

NSS

NOT SOLD SEPARAT

HOSE - header lift return, 9 inch (Order 364360C1 and, Serial Range: cut-length)

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-70)

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

1980049C1

HOSE

ASSEMBLY - relief valve drain

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure 8-48) (If equipped)

1шт.

18

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 x 7/8-14 inch thread

1шт.

19

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

- swivel, 1-3/16-12 inch thread

1шт.

20

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

straight 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

21

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

25

1986694C1

VALVE

ASSEMBLY - relief (If equipped) (P.I.N. JJC0047918 - JJC0117060)

1шт.

25

1542686C1

VALVE

ASSEMBLY - relief (If equipped), Serial Range: -JJC0117060

1шт.

26

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

CONNECTOR - straight jump, 1/2 to 3/4 inch thread

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

28

201-358

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 x 1-3/16-12 inch thread

1шт.

29

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

30

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

32

1310757C1

TUBE

- header lift and steering return

1шт.

34

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
