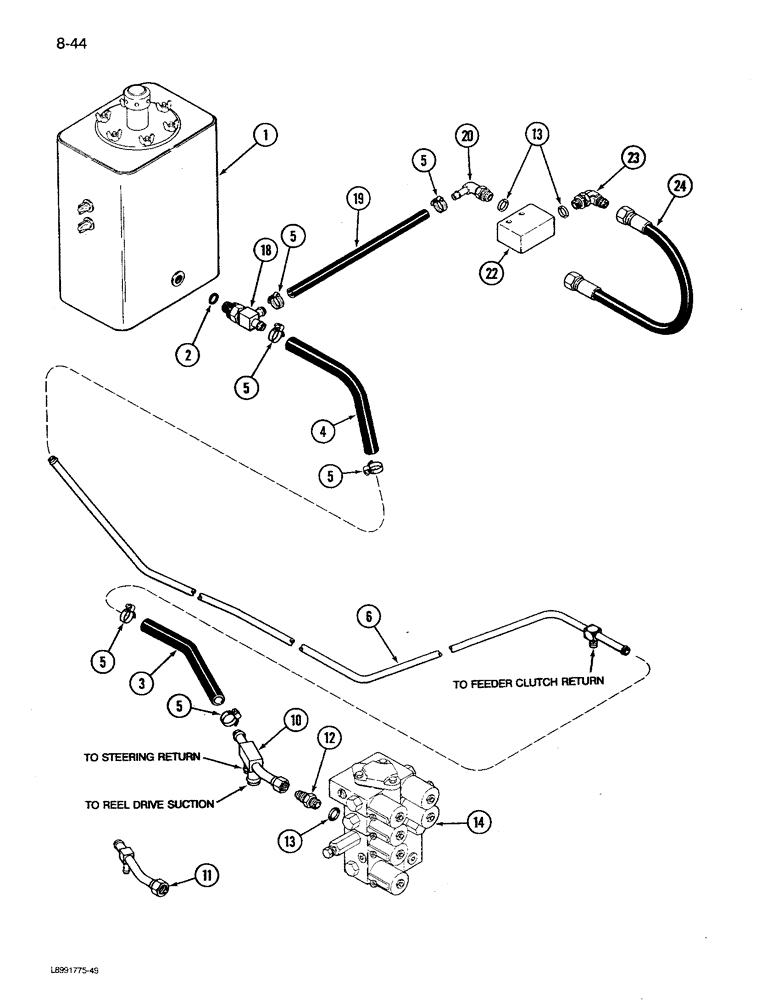

Запчасти Case IH 1680 (8-044) - HEADER LIFT RETURN SYSTEM, PRIOR TO P.I.N. JJC0047918 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-2)

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - oil, 9 inch (Order 364360C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - oil, 18 inch (Order 364360C1, Serial Range: cut-length)

1шт.

B90927

HOSE

- bulk, 50 foot roll

1шт.

5

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

1шт.

6

1324887C2

HYD TUBE

TUBE - header lift return

1шт.

10

1310757C1

TUBE

- manifold

1шт.

11

1310756C1

HYD TUBE,0.75, 0.5" OD, 198, 33 mm Length

TUBE ASSEMBLY - header lift return (With 825 header)

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short, 1-1/16-12 x 7/8-14 inch thread

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-70)

1шт.

18

172059C1

TEE

- adjustable

1шт.

19

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

20

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

- 90 degree adjustable

1шт.

22

549528R93

VALVE

ASSEMBLY - relief (See Figure 8-48)

1шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread

1шт.

24

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Pressure, Relief Valve 0.50" ID x 20.00", SAE 100R1 Class 7

1шт.
