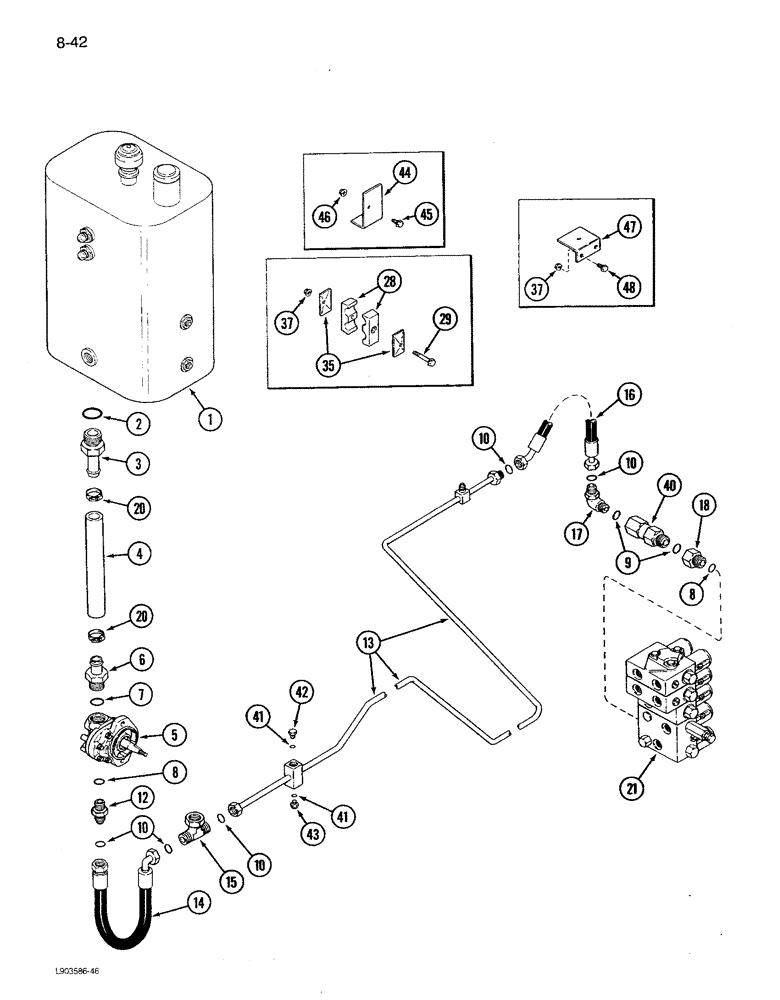

Запчасти Case IH 1680 (8-042) - HEADER LIFT SUPPLY SYSTEM, P.I.N. JJC0047918 THROUGH JJC0117059 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-4)

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

3

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - auxiliary pump suction, 300 mm (Order 637728C1 and, Serial Range: cut-length)

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - header lift, 15.1 GPM (See Figure 8-58)

1шт.

6

180182C1

FITTING

CONNECTOR - 1-5/16-12 thread x 1 inch barb end

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

12

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter - straight 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

13

1347152C1

TUBE,2305 mm Length

ASSEMBLY - valve stack supply

1шт.

14

1980050C1

HOSE

ASSEMBLY - auxiliary pump pressure

1шт.

15

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

- swivel, 1-3/16-12 inch thread

1шт.

16

1347114C2

HOSE

ASSEMBLY - valve stack supply

1шт.

17

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 1-3/16-12 x 1-1/6-12 inch thread

1шт.

18

1968919C1

FITTING

ADAPTER - reducer, 7/8-14 x 1-1/16-12 inch thread

1шт.

20

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose, No. 14

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figures 8-62 or 8-64)

1шт.

28

1347072C1

CLAMP

- tube retaining, 1 x 3/4 inch

3шт.

29

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

35

1347127C1

PLATE

- hydraulic tube clamp

4шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

40

1272346C1

FILTER

ASSEMBLY - valve pressure line

1шт.

42

76349

PLUG,9/16" - 18 ORB

1шт.

43

S243647

COUPLING

ASSEMBLY - quick disconnect

1шт.

44

1347174C1

SUPPORT

BRACKET - mounting, hdyraulic tube, rear

1шт.

45

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

46

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

47

1347175C1

SUPPORT

BRACKET - mouting, hydraulic tube, front

1шт.

48

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
