(8-040) - HEADER LIFT SUPPLY SYSTEM, PRIOR TO P.I.N. JJC0047918

Запчасти Case IH 1680 (8-040) - HEADER LIFT SUPPLY SYSTEM, PRIOR TO P.I.N. JJC0047918 (07) - HYDRAULICS

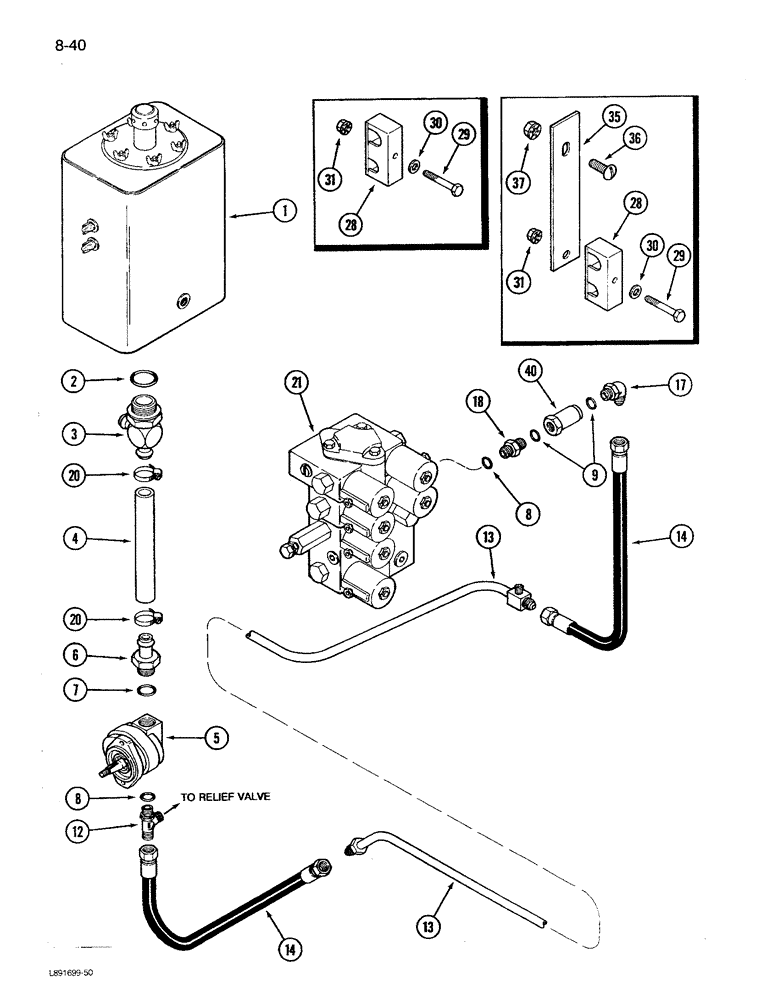

Схема запчастей Case IH 1680 - (8-040) - HEADER LIFT SUPPLY SYSTEM, PRIOR TO P.I.N. JJC0047918 (07) - HYDRAULICS
20
12
31
13
31
8
4
20
1
36
30
6
13
28
5
21
14
29
2
37
14
35
8
17
40
18
9
29
30
7
28
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-2)

1шт.

2

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

6шт.

3

1301506C1

TEE

- adjustable 1-7/8 thread x 1 inch barb end

1шт.

4

1272624C1

HOSE,1.00" ID x 8.25"

- Header lift pump suction 1.00" ID x 8.25"

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - header lift, 15.1 GPM (See Figure 8-2)

1шт.

6

180182C1

FITTING

CONNECTOR - 1-5/16-12 thread x 1 inch barb end

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

12

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

- adjustable, 7/8 inch thread

1шт.

13

187811C1

HYD TUBE

TUBE - header lift pressure

1шт.

14

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Header Lift Pressure 0.50" ID x 20.00", SAE 100R1 Class 7

2шт.

17

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 7/8-14 x 1-1/16-12 inch thread

1шт.

18

1957367C1

FITTING

ADAPTER - reducer, 7/8-14 x 1-1/16-12 inch thread

1шт.

20

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24 Type F

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-70)

1шт.

28

121714C1

CLAMP

- header lift tubes

3шт.

29

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

30

25707R1

WASHER,.281" x 5/8" x .075", HDN

flat, 9/32 x 5/8 x 1/16 in.

3шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

35

187510C2

BAR

- header lift tubes, 7-1/2 inch 1ong

1шт.

36

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

40

93306C2

FILTER

ASSEMBLY, valve pressure line, optional

1шт.

41

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.
