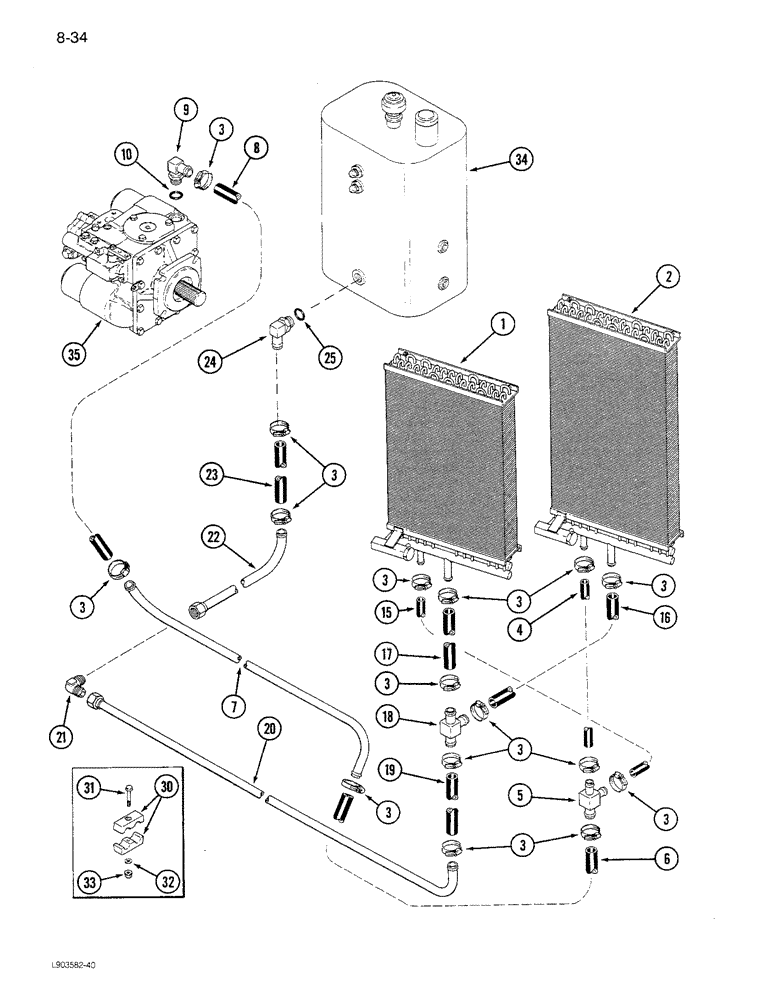

Запчасти Case IH 1680 (8-034) - OIL COOLER SYSTEM, RICE COMBINE, P.I.N. JJC0047918 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - hydraulic oil (See Figure 8-36)

1шт.

2

REF

INSTRUCTION

COOLER ASSEMBLY - auxiliary hydraulic oil (See Figure 8-38)

1шт.

3

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

16шт.

4

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to pump, 406 mm (Order 364360C1 and, Serial Range: cut-length)

1шт.

5

1979670C1

TEE

- cooler supply

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to pump, 349 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

7

1979658C1

HYD TUBE,1" OD

TUBE - cooler to pump

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to pump, 610 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

9

178995C1

ELBOW

- 90 degree, 1-1/16-12 thread x 1 inch barb end

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to oil cooler, 572 mm (Order 364360C1 and, Serial Range: cut-length)

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to reservoir, 560 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir, 610 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

18

1979672C1

TEE

- cooler return

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir, 480 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

20

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE ASSEMBLY - cooler to reservoir

1шт.

21

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch thread

1шт.

22

1979666C1

HYD TUBE,1" OD

TUBE ASSEMBLY - cooler to reservoir

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir, 394 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

24

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree adjustable, 1-5/16-12 thread x 1 inch barb end

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

30

1347071C1

CLAMP

- tube retaining, 1 x 1 inch

2шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

32

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

34

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-4)

1шт.

35

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-40)

1шт.
