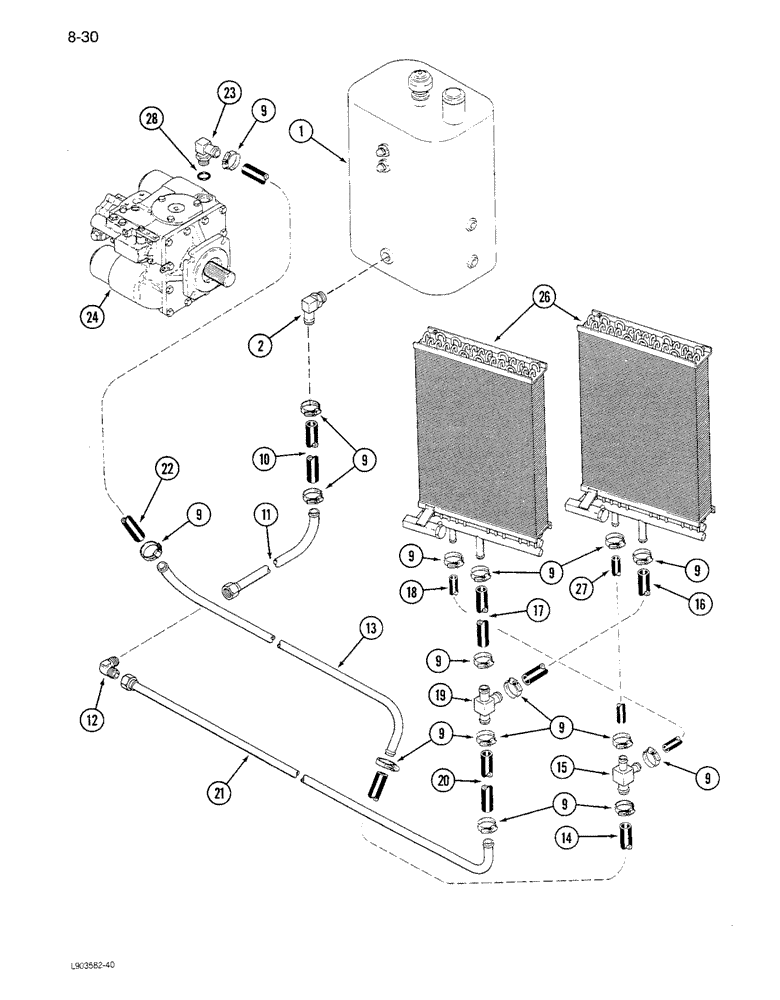

Запчасти Case IH 1680 (8-030) - OIL COOLER SYSTEM, RICE COMBINE W/O POWER GUIDE AXLE, P.I.N. JJC0046101 & AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-4)

1шт.

2

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree adjustable, 1-5/16-12 inch thread x 1 inch barb end

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - cooler return to bypass tee, 267 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

11

1979666C1

HYD TUBE,1" OD

TUBE ASSEMBLY - cooler return

1шт.

12

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch thread

1шт.

13

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE ASSEMBLY - oil cooler return

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to return tee, 610 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

15

1979672C1

TEE

- cooler return

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to return tee, 559 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - cooler to return tee, 560 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - cooler to supply tee, 508 mm (Order 364360C1 and, Serial Range: cut-length)

1шт.

19

1979670C1

TEE

- cooler supply

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - cooler supply to tee, 394 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

21

1979658C1

HYD TUBE,1" OD

TUBE - oil cooler supply

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - hydraulic cooler to pump, 610 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

23

178995C1

ELBOW

- beaded tube

1шт.

24

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-106), Start Serial: JJC0047918

1шт.

24

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-40), Serial Range: -JJ0047918

1шт.

26

REF

INSTRUCTION

COOLER ASSEMBLY - hydraulic oil (See Figure 8-36 and 38)

1шт.

Prior to P.I.N JJC0047918 auxiliary and standard oil cooler are both 84659C1. After P.I.N. JJC0047918 if auxiliary oil cooler is required order A189469.

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to tee, 572 mm (Order 364361C1 and cut, Serial Range: cut-length)

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
