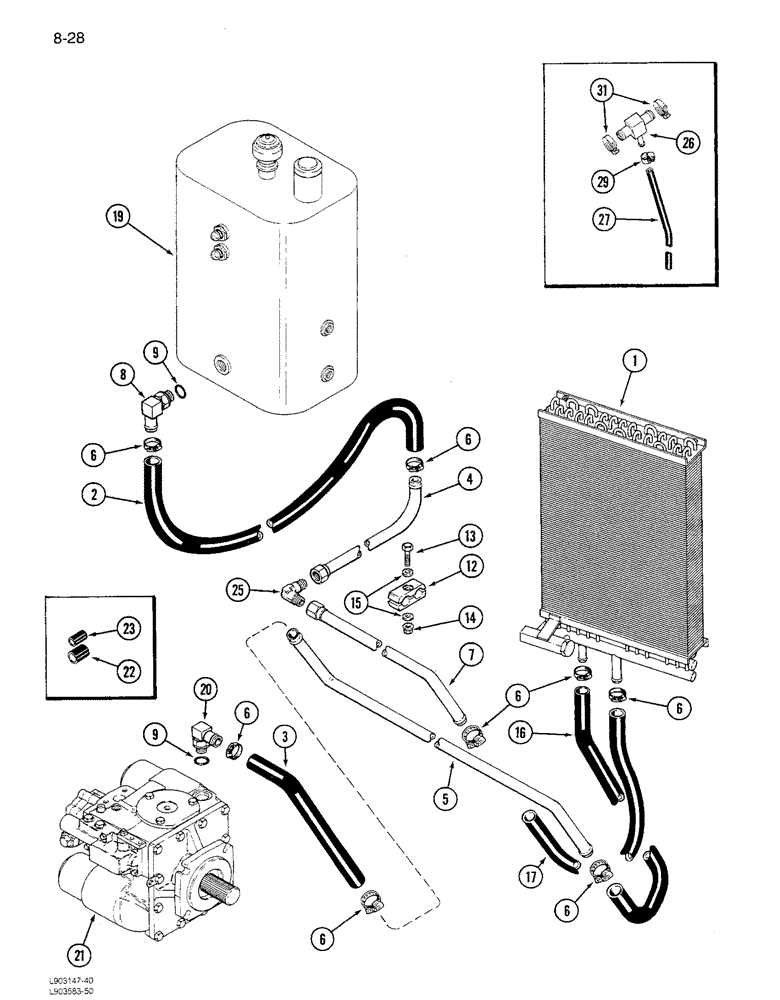

Запчасти Case IH 1680 (8-028) - OIL COOLER SYSTEM, CORN & GRAIN COMBINE, P.I.N. JJC0046101 THROUGH JJC0047918 (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil (See Figure 8-36)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - oil, 470 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - oil, 685 mm (Order 180720C2 and, Serial Range: cut-length)

1шт.

4

1979666C1

HYD TUBE,1" OD

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

5

1979658C1

HYD TUBE,1" OD

TUBE - reservoir to oil cooler

1шт.

6

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

8шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

8

178995C1

ELBOW

ASSEMBLY - 90 degree, system return

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

2шт.

12

1347071C1

CLAMP

- tube retaining, 1 x 1 inch

2шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

16

1979783C1

HOSE

- oil cooler supply

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - oil, 1 040 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

19

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-4)

1шт.

20

178995C1

ELBOW

- beaded tube

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-28)

1шт.

22

187935C1

STRIP

- tube clamp, 1 inch ID

2шт.

23

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- tube clamp, 3/4 inch ID

2шт.

25

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch flare

1шт.

26

1957288C1

FITTING

TEE - return hose

1шт.

Used on combines equipped with power guide axle.

1шт.

27

1957283C3

HOSE

- case drain

1шт.

Used on combines equipped with power guide axle.

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

Used on combines equipped with power guide axle.

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

Used on combines equipped with power guide axle.

1шт.
