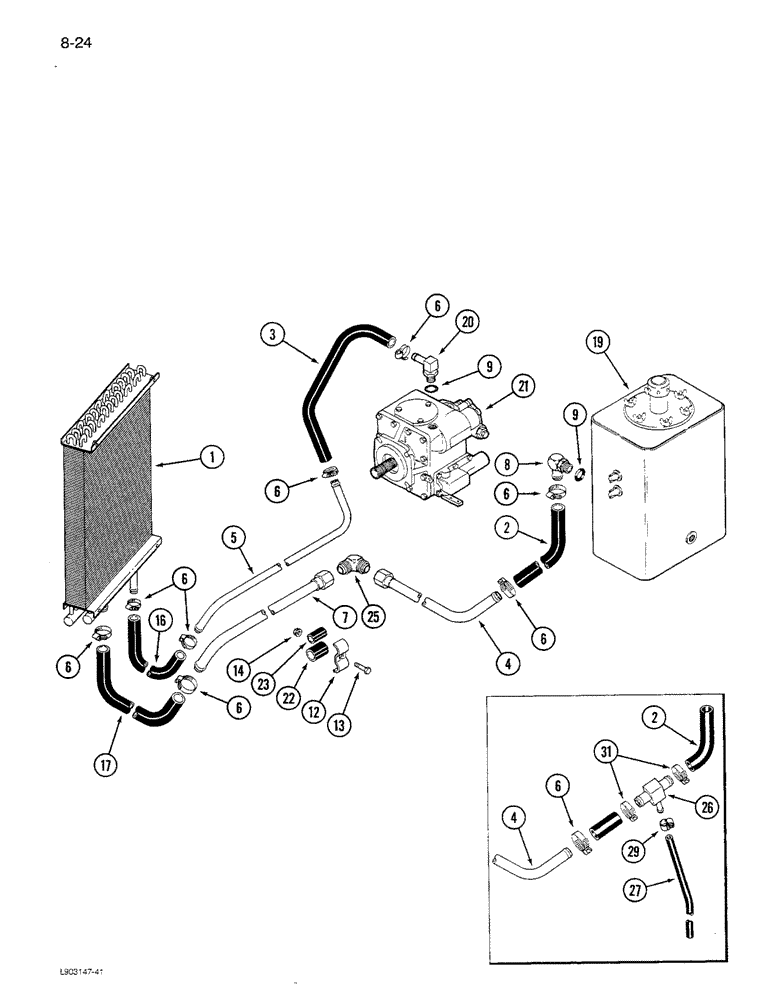

Запчасти Case IH 1680 (8-024) - OIL COOLER SYSTEM, PRIOR TO P.I.N. JJC0046101 (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil (See Figure 8-36)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - oil, 470 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - oil, 685 mm (Order 180720C2 and, Serial Range: cut-length)

1шт.

4

1970444C1

HYD TUBE,25.4 mm OD

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

5

1330590C1

HYD TUBE

TUBE ASSEMBLY - oil cooler to hydrostatic pump

1шт.

6

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

8шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

8

178995C1

ELBOW

ASSEMBLY - 90 degree, system return

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

2шт.

12

157678C1

CLAMP

- hydraulic tube

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - oil, 940 mm (Order 180720C2 and, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - oil, 1 040 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

19

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-2)

1шт.

20

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, 1-1/16 thread x 3/4 inch barb end

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-28)

1шт.

22

187935C1

STRIP

- tube clamp, 1 inch ID

2шт.

23

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- tube clamp, 3/4 inch ID

2шт.

25

9402947

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- 90 degree, 1-5/16-12 inch thread

1шт.

26

1957288C1

FITTING

TEE - return hose

1шт.

Used on corn and grain combines equipped with power guide axle.

1шт.

27

1957283C3

HOSE

- case drain

1шт.

Used on corn and grain combines equipped with power guide axle.

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

Used on corn and grain combines equipped with power guide axle.

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

Used on corn and grain combines equipped with power guide axle.

1шт.
