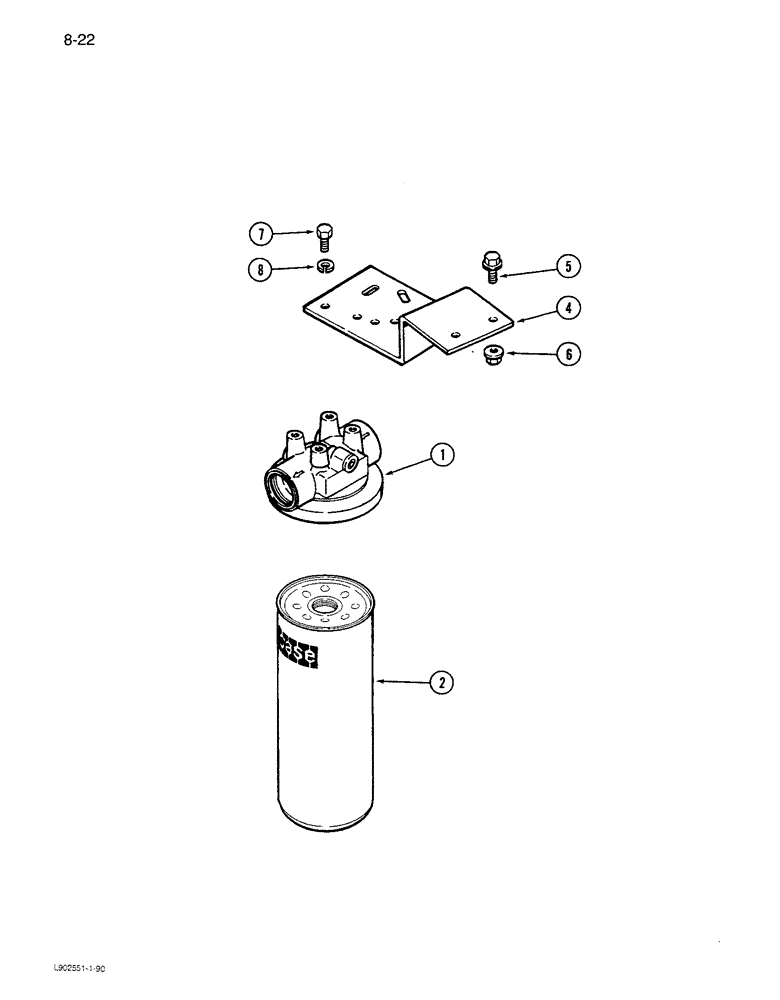

Запчасти Case IH 1680 (8-022) - HYDRAULIC CHARGE PRESSURE FILTER, RICE COMBINE, P.I.N. JJC0047918 & AFTER (07) - HYDRAULICS

1346032C1

FILTER

ASSEMBLY - charge pump pressure, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter (Order 1346032C1)

1шт.

2

1346035C1

FILTER

ELEMENT - filter

1шт.

4

1979993C2

SUPPORT

- charge pressure filter

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

7

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.
