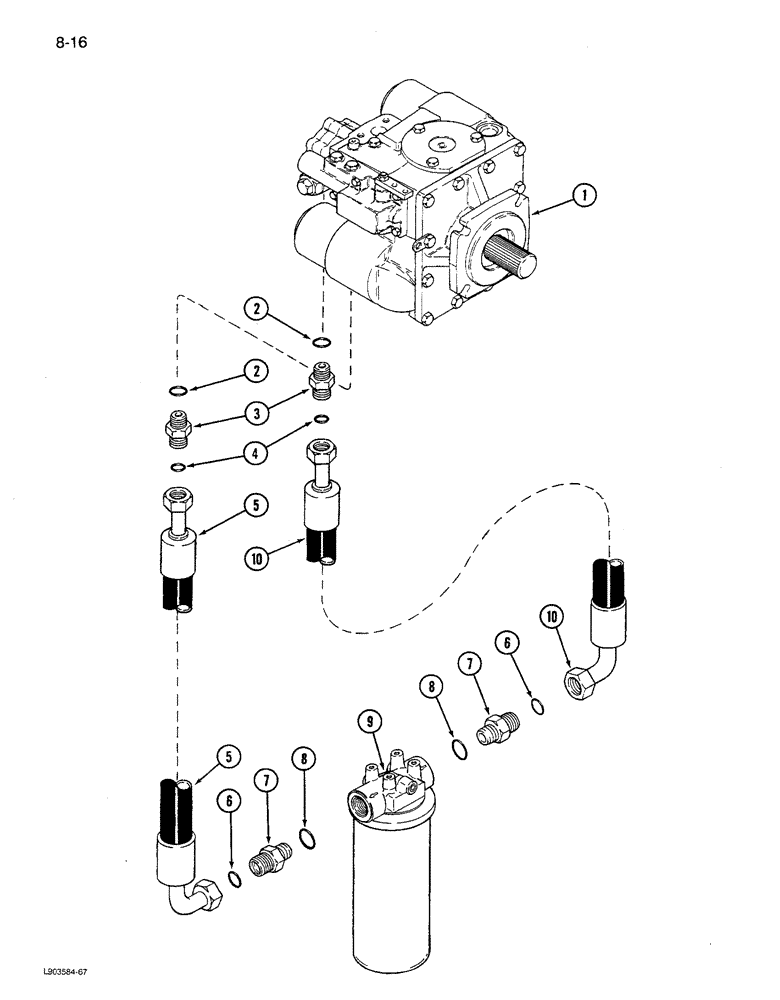

Запчасти Case IH 1680 (8-016) - FILTER CHARGE SYSTEM, RICE COMBINE, P.I.N. JJC0047918 & AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-40)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

2шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

1989339C1

HOSE ASSY.

HOSE ASSEMBLY - pressure filter return

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

7

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 x 1-5/16 inch thread

2шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

2шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - charge pump pressure (See Figure 8-22)

1шт.

10

1989338C1

HOSE ASSY.

HOSE ASSEMBLY - pressure filter return

1шт.
