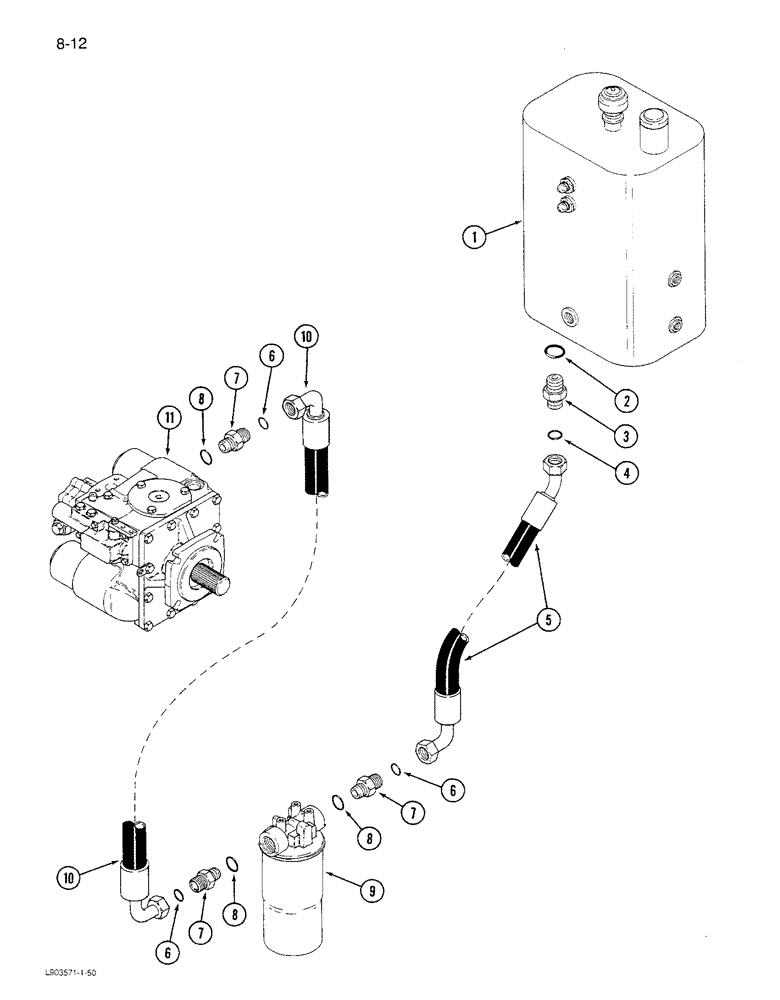

Запчасти Case IH 1680 (8-012) - HYDROSTATIC PUMP SUPPLY SYSTEM, CORN & GRAIN COMBINE, P.I.N. JJC0047918 THROUGH JJC0117059 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic, 8 gallon (See Figure 8-6)

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

3

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

CONNECTOR - straight, 1-11/16-12 x 1-5/8-12 inch thread

1шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

5

1980046C1

HOSE

ASSEMBLY - charge filter suction

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

7

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 x 1-5/16 inch thread

3шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

3шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - charge pump suction (See Figure 8-20)

1шт.

10

1347277C1

HOSE

ASSEMBLY - charge pump suction

1шт.

11

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-34)

1шт.
