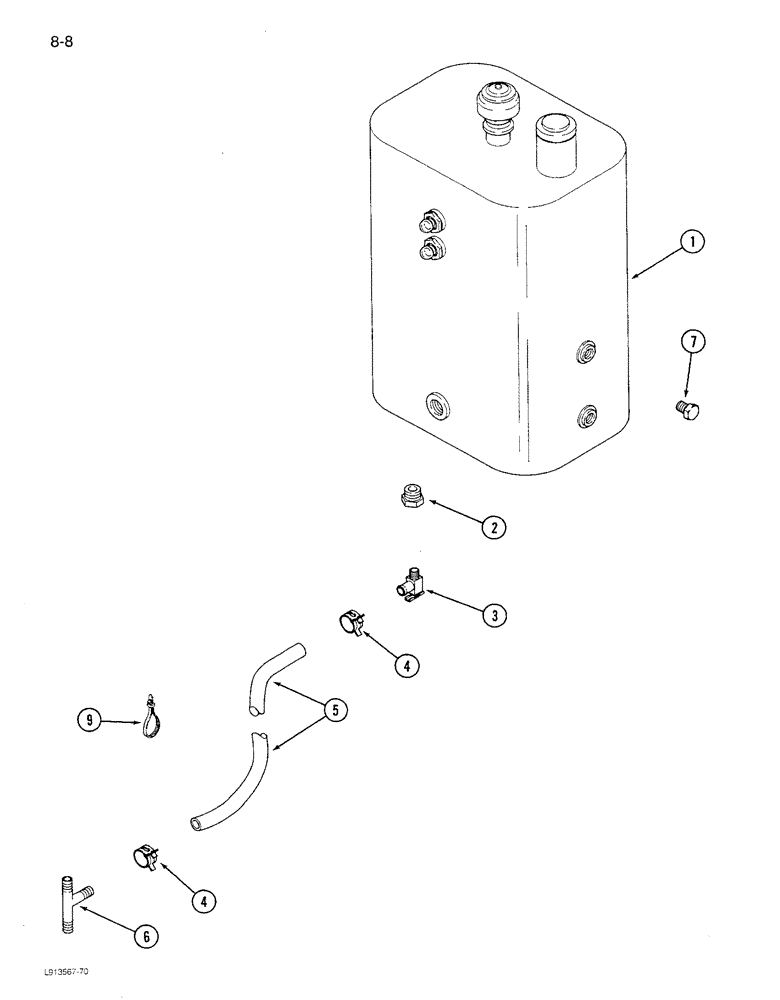

Запчасти Case IH 1680 (8-008) - HYDRAULIC RESERVOIR DRAIN, P.I.N. JJC0047918 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Figure 8-6)

1шт.

2

175778H1

ADAPTER

- 1/2 to 3/8 inch pipe

1шт.

3

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - reservoir drain

1шт.

4

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

5

NSS

NOT SOLD SEPARAT

HOSE - reservoir oil drain, 1350 mm (Order 1977295CX and, Serial Range: cut-length)

1шт.

6

1977169C1

TEE

- oil drain

1шт.

7

221-664

PLUG,Hex Hd, 1/2"-14

- hex, 1/2 inch PT

2шт.

9

702093C1

CABLE TIE

STRAP - nylon retaining

1шт.
