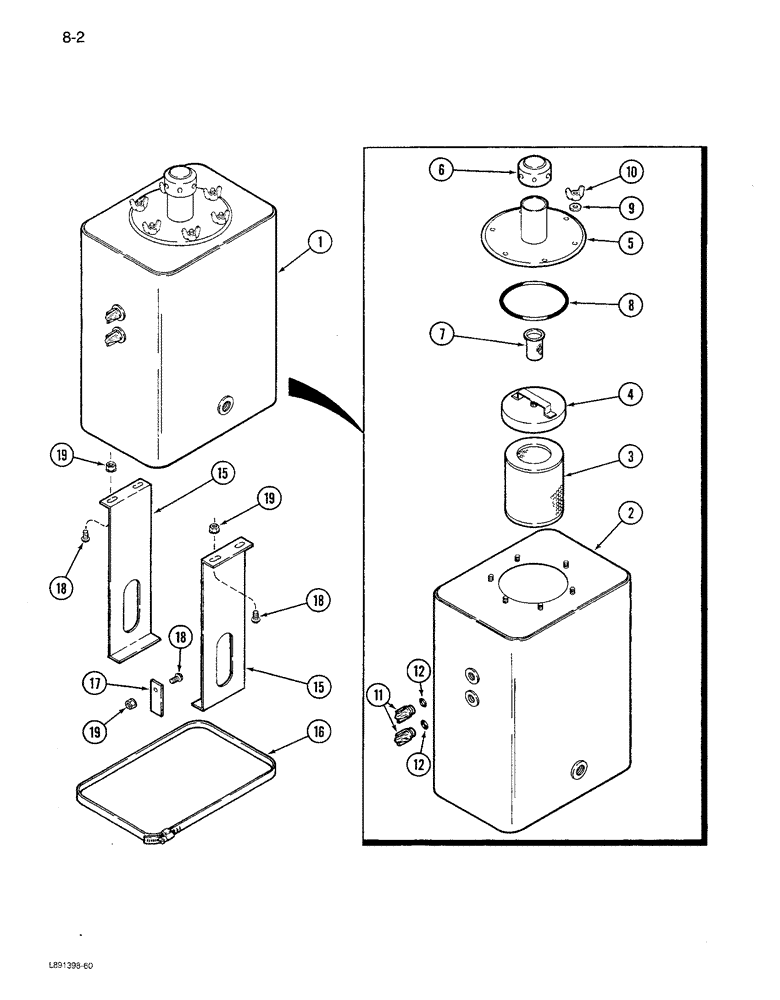

Запчасти Case IH 1680 (8-002) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JJC0047918 (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir (Order 1301237C92)

1шт.

3

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - tank filter

1шт.

4

173131C1

COVER ASSY

COVER - filter

1шт.

5

1285715C91

COVER

ASSEMBLY - tank, Includes: Ref. 6 and 7

1шт.

6

1272941C1

CAP

ASSEMBLY - tank cover breather

1шт.

7

179489C1

FILTER, ENGINE OIL

FILTER SCREEN - tank cover

1шт.

8

238-5438

O-RING,0.275" Thk x 6.225" ID, -438, Cl 5, 75 Duro

- 6-1/4 x 6-3/4 x 1/4 inch, Class 5 (Replaces 3042933R1)

1шт.

3042933R1 should be 238-5438 which is a 6-1/4" id x1/4" cross section o-ring. The supplier of the 1285715C91 cover verified the o-ring groove dims. to be 6.225 id x .275.

1шт.

9

21784R1

WASHER

- flat, 17/64 x 1/2 x 3/64 inch

6шт.

10

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

6шт.

244600R92

SIGHTGLASS

GLASS ASSEMBLY - sight, oil level, Includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

GLASS - sight (Order 244600R92)

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

15

193291C1

SUPPORT

- hydraulic reservoir

2шт.

16

27804R1

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

CLAMP - hose, No. 180 Type F

2шт.

17

159752C1

SUPPORT

- hydraulic reservoir clamp

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

5шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

5шт.
