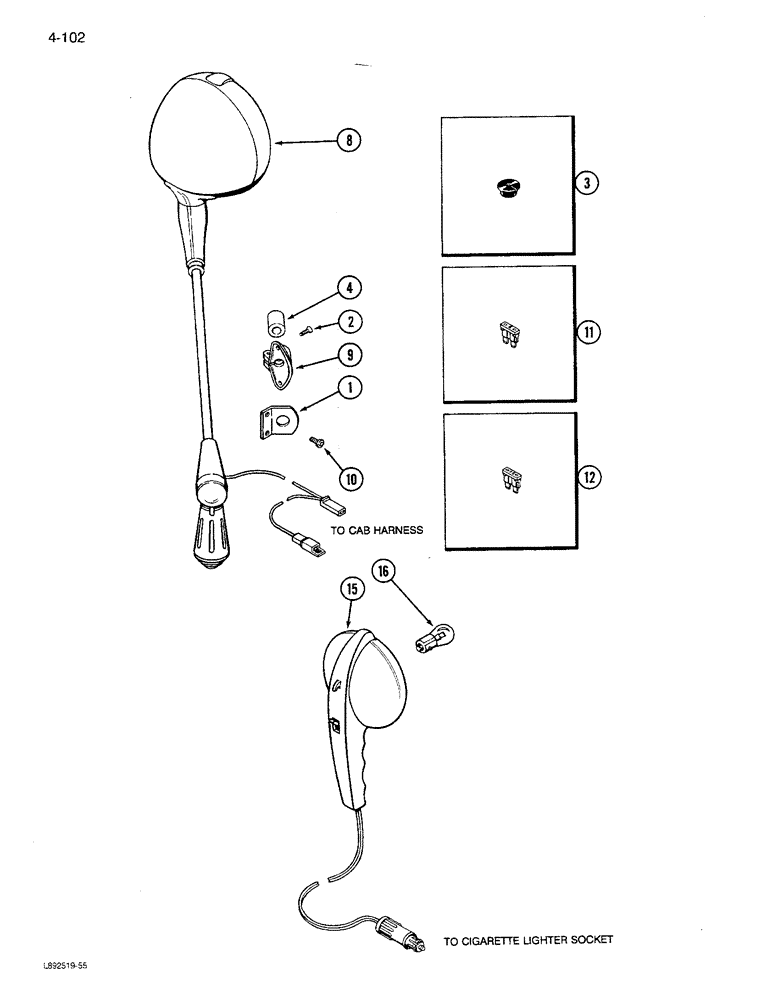

Запчасти Case IH 1680 (4-102) - MOUNTED SPOTLIGHT ATTACHMENT (06) - ELECTRICAL

1323590C91

LAMP BASE

LIGHT ATTACHMENT - spotlight, Mounted, Includes: Ref. 1 - 12

1шт.

1

1329859C1

BRACKET

- spotlight

1шт.

2

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head slotted tap, No. 10 NC x 3/8 inch

2шт.

3

1330144C1

GROMMET

- wire

1шт.

4

1330145C1

BUSHING

- pivot

1шт.

8

91938C1

INTERIOR LIGHT

SPOTLIGHT ASSEMBLY - cab

1шт.

9

92015C1

BRACKET

- spotlight

1шт.

10

265-1358

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - oval head tap, No. 10-16 x 1/2 inch

2шт.

11

A149798

FUSE

- 5 ampere

1шт.

12

A149799

FUSE

- 7.5 ampere

1шт.

15

1312876C1

LAMP

SPOTLIGHT ASSEMBLY - hand held

1шт.

16

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156, 12 volt/21 watt, hand held spotlight

1шт.
