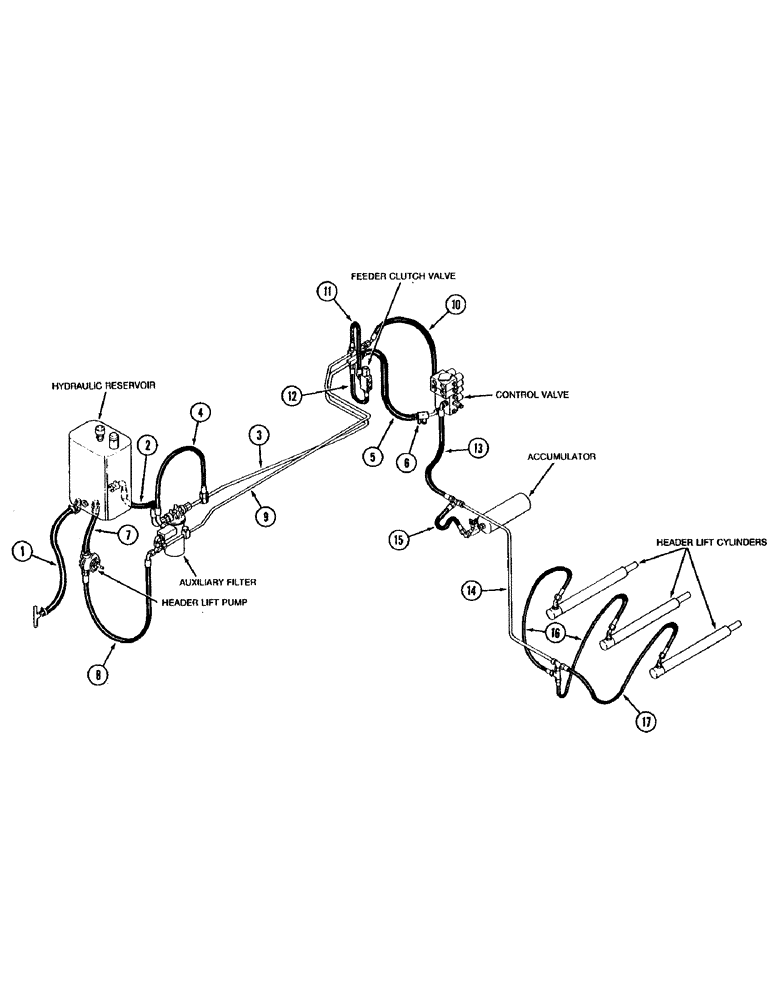

Запчасти Case IH 1680 (1-012) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Reservoir Drain Hose, Figure 8-8

1шт.

2

Filter to Reservoir Return Hose, Figure 8-46

1шт.

3

Valve Stack Return Tube Assembly, Figure 8-46

1шт.

4

Relief Valve Drain Hose Assembly, Figure 8-46

1шт.

5

Header Lift Return Hose, Figure 8-46

1шт.

6

Header Lift and Steering Return Tube, Figure 8-46

1шт.

7

Header Lift Suction Hose, Figure 8-42

1шт.

8

Header Lift Pressure Hoses, Figure 8-42

1шт.

9

Header Lift Pressure Tube, Figure 8-42

1шт.

10

Valve Stack Supply Hose Assembly, Figure 8-42

1шт.

11

Feeder Clutch Hose Assembly, Figures 8-100, 8-102

1шт.

12

Feeder Clutch Hose Assembly, Figures 8-100, 8-102

1шт.

13

Header Lift Hose Assembly, Figures 8-60, 8-62, 8-64, 8-66

1шт.

14

Header Lift Tube Assembly, Figures 8-60, 8-62, 8-64, 8-66

1шт.

15

Accumulator Hose Assembly, Figure 8-112

1шт.

16

Header Lift Cylinder Hose Assembly, Figures 8-60, 8-62, 8-64, 8-66

1шт.

17

Header Lift Cylinder Hose Assembly, Figures 8-60, 8-62, 8-64, 8-66

1шт.
