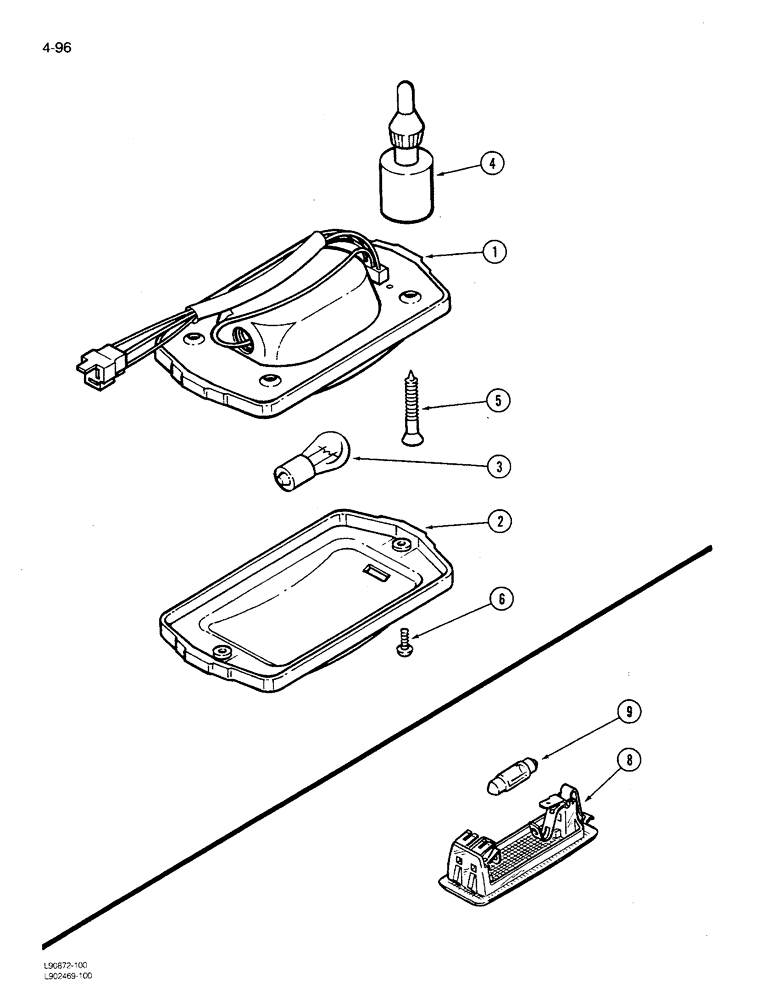

Запчасти Case IH 1680 (4-096) - DOME LIGHT ASSEMBLY (06) - ELECTRICAL

1

245659C91

LAMP

LIGHT ASSEMBLY - dome, Includes: Ref. 2 and 3

1шт.

2

245679C1

LENS

- dome light

1шт.

3

142457

BULB,C6, #1142, 12.8V

LAMP - type C-6, No. 1142

1шт.

117995C1

PACKAGE

FASTENER KIT - dome light (Package of 5), Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

FASTENER - dome light (Order 117995C1)

4шт.

5

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - oval head slotted tap, No. 8-18 x 1-1/2 inch

4шт.

6

NSS

NOT SOLD SEPARAT

SCREW - lens mounting (Order 245659C91)

2шт.

8

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Includes: Ref. 9

1шт.

9

3050958R1

BULB,K, 12V, 10W

- light K, 12V, 10W

1шт.
