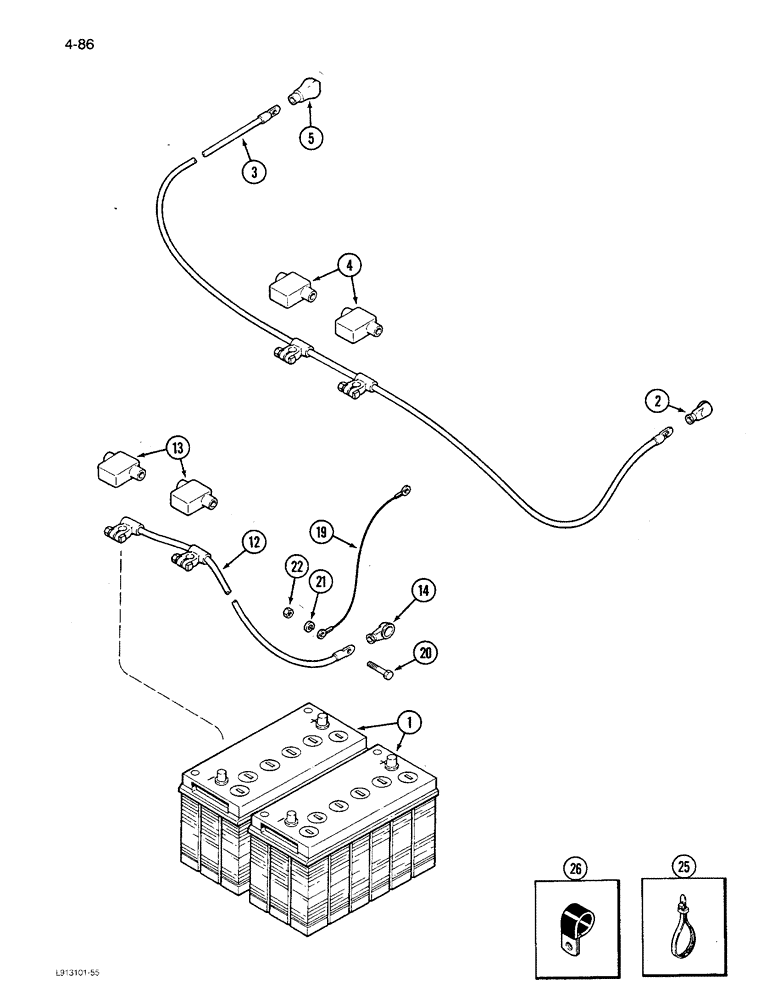

Запчасти Case IH 1680 (4-086) - BATTERY & BATTERY CABLES, W/TAPERED CLAMP POSTS, P.I.N. JJC0115301 & AFTER (06) - ELECTRICAL

1

A187596

DRY BATTERY

- electrical supply, 12 volt

2шт.

2

S115407

BOOT

- battery cable

1шт.

3

1964783C3

CABLE

ASSEMBLY - battery, positive, Includes: Ref. 4 and 5

1шт.

For combines without feeder-reverse attachment. For combines with feeder-reverse attachment, see figure 4-74.

1шт.

4

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

5

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

12

92023C3

CABLE

ASSEMBLY - battery, ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

19

158477C91

CABLE

ASSEMBLY - cab and valve bank ground

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

25

702093C1

CABLE TIE

STRAP - cable tie

1шт.

26

R14668

CLAMP

- battery cable

10шт.

26

84183C1

CLAMP

- 17/32 inch mounting hole

1шт.
