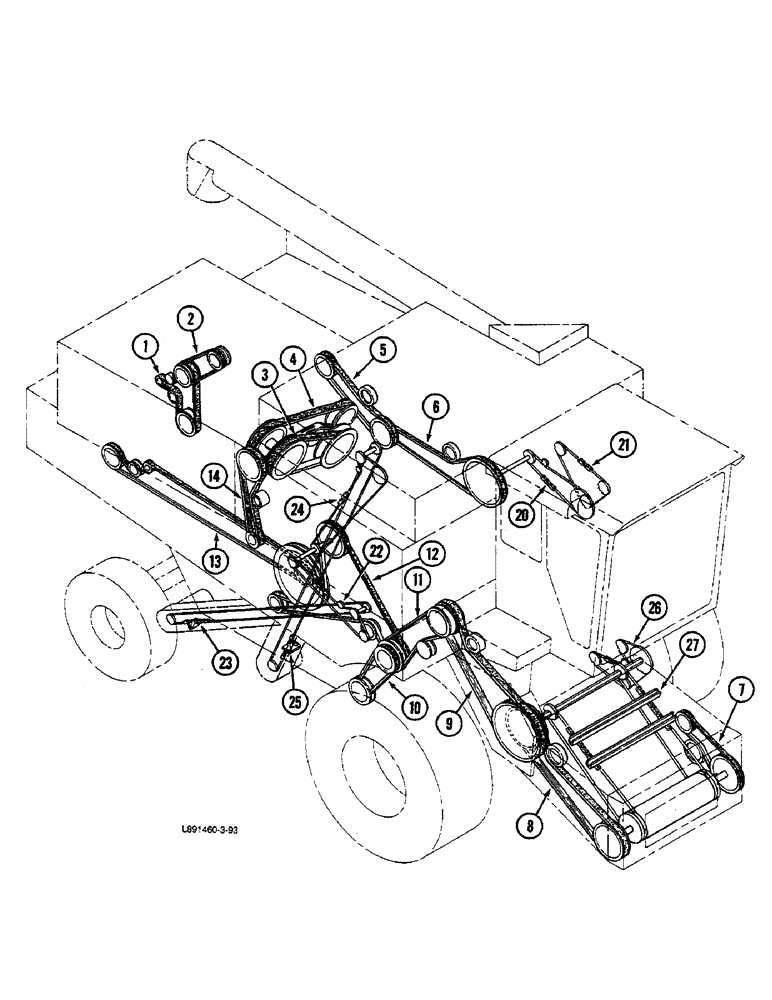

Запчасти Case IH 1680 (1-010) - PICTORIAL INDEX, BELTS, CHAINS (00) - PICTORIAL INDEX

1

Engine Fan and Alternator Belt, Figure 2-18

1шт.

2

Air Conditioning Compressor Belt, Figure 9G-64

1шт.

3

Rotor Drive Belt, Figure 9B-4

1шт.

4

Separator Drive Belt, Figure 9A-12

1шт.

5

Auxiliary Pump Drive Belt, Figure 8-50

1шт.

6

Grain Tank Unloader Drive Belt, Figures 9E-12, 9E-14

1шт.

7

Reel Pump Drive Belt, Figures 8-114, 8-116

1шт.

8

Feeder Jackshaft Drive Belt, Figures 9A-22, 9A-24

1шт.

9

Feeder Drive Belt, Figures 9A-18, 9A-20

1шт.

10

Cleaning Fan Drive Belt, Figure 9C-12

1шт.

11

Cleaning Fan Jackshaft Belt, slow speed, Figure 9C-16

1шт.

12

Elevator Drive Belt, Figure 9A-4

1шт.

13

Straw Spreader Drive Belt, Figure 9F-6

1шт.

14

Straw Chopper Drive Belt, Figure 9F-12

1шт.

20

Grain Tank Unloader Drive chain, Figures 9E-20, 9E-22 CHAIN

1шт.

21

Rear Horizontal Auger Drive Chain, Figures 9E-20, 9E-22 CHAIN

1шт.

22

Tailings Elevator Drive Chain, Figure 9D-26 CHAIN

1шт.

23

Tailings Elevator Conveyor Chain, Figure 9D-22 CHAIN

1шт.

24

Clean Grain Elevator Drive Chain, Figures 9D-10, 9D-12 CHAIN

1шт.

25

Clean Grain Elevator Conveyor Chain, Figure 9D-4 CHAIN

1шт.

26

Feeder Reverser Drive Chain, Figures 9A-42, 9A-44 CHAIN

1шт.

27

Feeder Conveyor Chain, Figures 9A-34, 9A-36 CHAIN

1шт.
