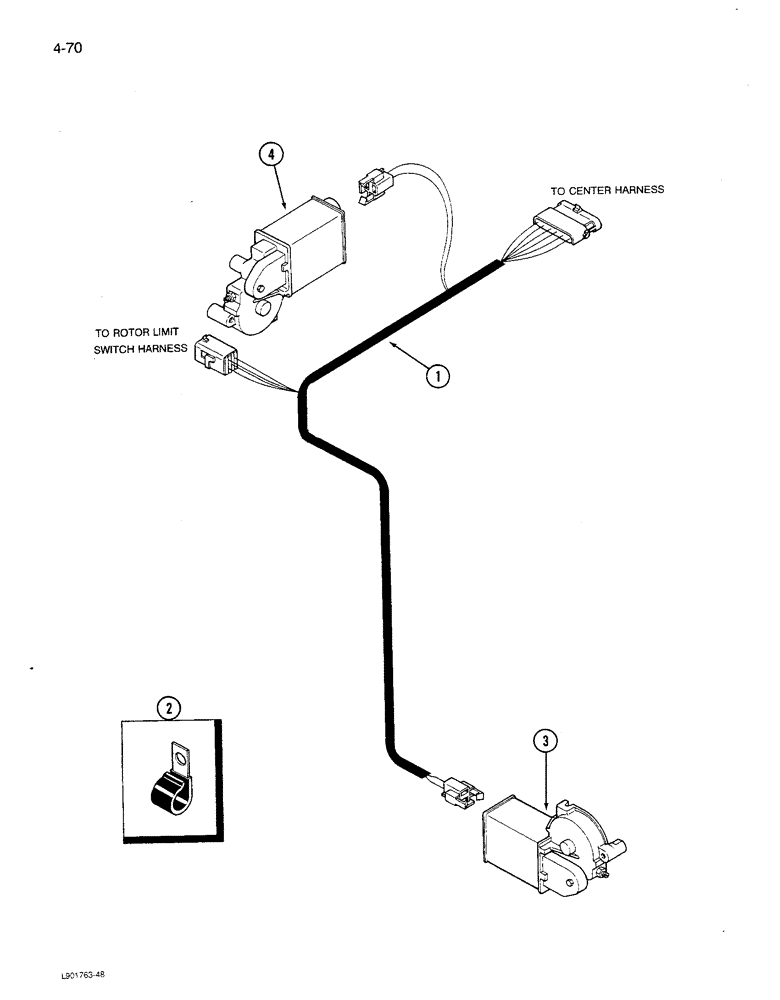

Запчасти Case IH 1680 (4-070) - FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

1

245230C1

HARNESS

- fan and rotor speed, Start Serial: JJC0047058

1шт.

1

1983397C1

HARNESS

- fan and rotor speed, Serial Range: -JJC0047058

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

5шт.

3

REF

INSTRUCTION

MOTOR - fan speed (See Figure 9C-14)

1шт.

4

REF

INSTRUCTION

MOTOR - rotor speed (See Figure 9B-6)

1шт.
