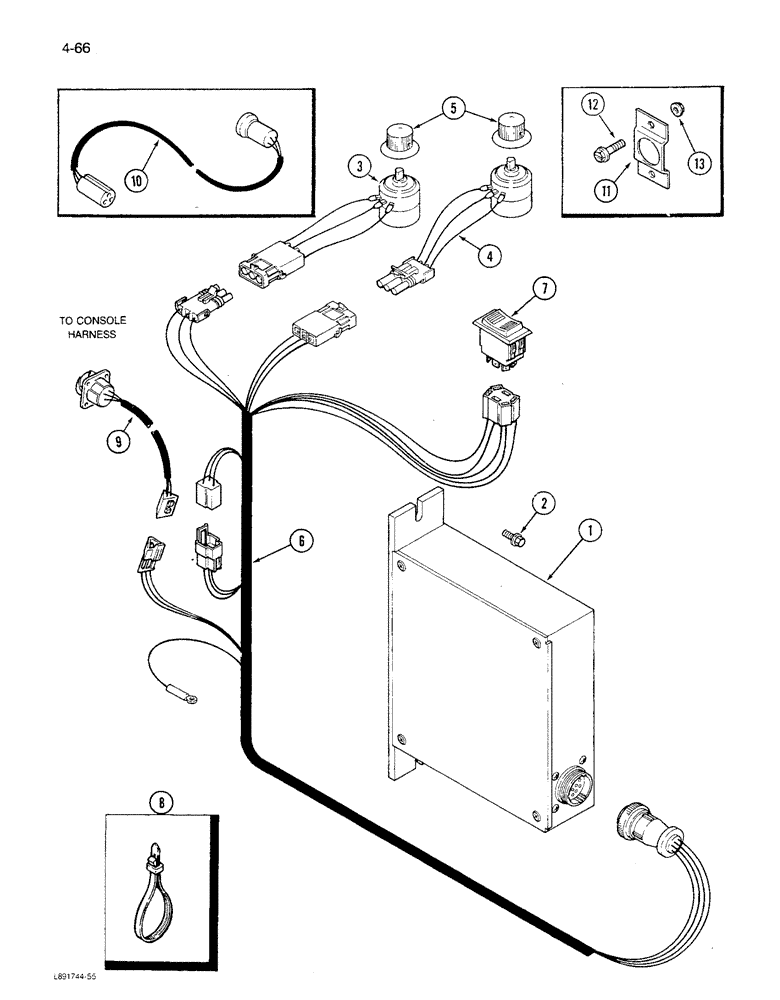

Запчасти Case IH 1680 (4-066) - AUTOMATIC HEADER HEIGHT CONTROL HARNESS (06) - ELECTRICAL

1

91479C2

CASE

MODULE KIT - automatic header height control, Includes: Ref. 2

1шт.

2

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex flange, 1/4 NC x 1/2 inch

2шт.

3

245385C1

POTENTIOMETER,1000 Ohm

Header Height Control 1000 Ohm

1шт.

4

245925C1

POTENTIOMETER,1000 Ohm

Sensitivity Control 1000 Ohm

1шт.

5

1345235C1

BUTTON

KNOB - control

2шт.

6

1345231C1

HARNESS

- automatic header height

1шт.

7

245012C1

SWITCH

- automatic header control, ON-OFF

1шт.

8

702093C1

CABLE TIE

STRAP - tie

1шт.

9

1994842C1

HARNESS

ASSEMBLY - automatic header height control hose

1шт.

P.I.N. JJC0048625 and after

1шт.

10

1331312C1

WIRE HARNESS

HARNESS - automatic header height control extension

1шт.

P.I.N. JJC0048625 and after

1шт.

11

91795C1

SUPPORT

BRACKET - transducer mounting

1шт.

P.I.N. JJC0048625 and after

1шт.

12

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

- hex washer head, No. 10 NC x 1 inch

2шт.

13

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

2шт.

P.I.N. JJC0048625 and after

1шт.
