(4-058) - MAIN REAR HARNESS, PRIOR TO P.I.N. JJC0117060

Запчасти Case IH 1680 (4-058) - MAIN REAR HARNESS, PRIOR TO P.I.N. JJC0117060 (06) - ELECTRICAL

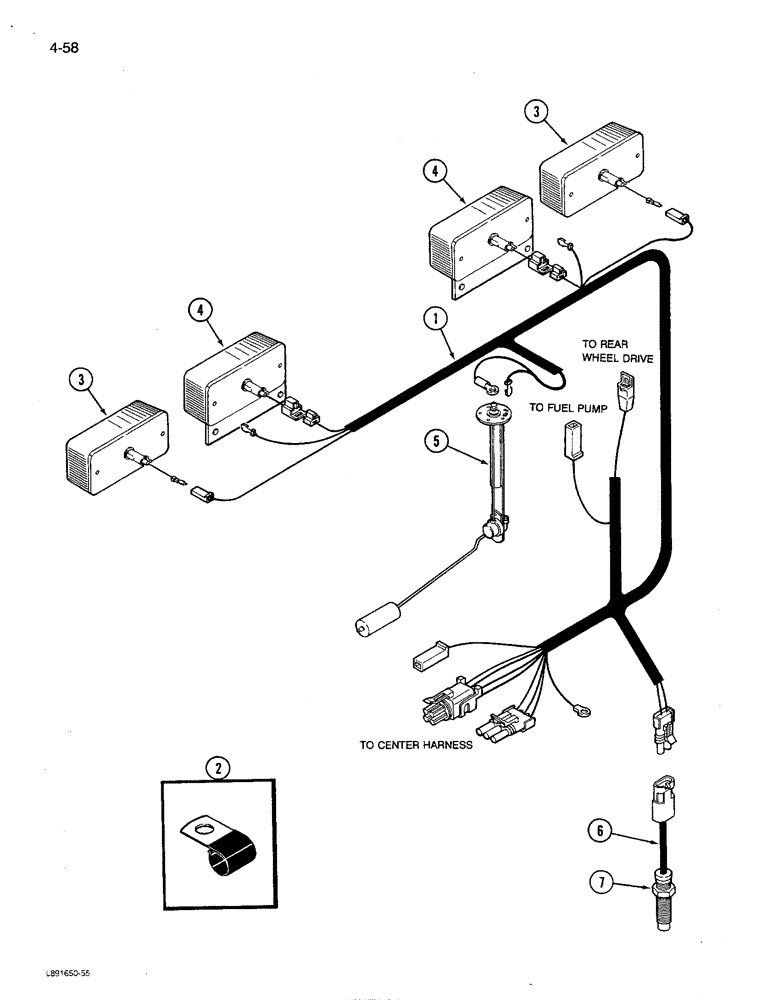

Схема запчастей Case IH 1680 - (4-058) - MAIN REAR HARNESS, PRIOR TO P.I.N. JJC0117060 (06) - ELECTRICAL
4
3
6
7
5
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245228C2

HARNESS

ASSEMBLY - rear main (Replaces 1983342C2)

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

1шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning, rear (See Figure 4-62)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-62)

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit (See Figure 3-14)

1шт.

6

1252494C2

TRANSMITTER

SENSOR - transducer, engine RPM

1шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

1шт.
