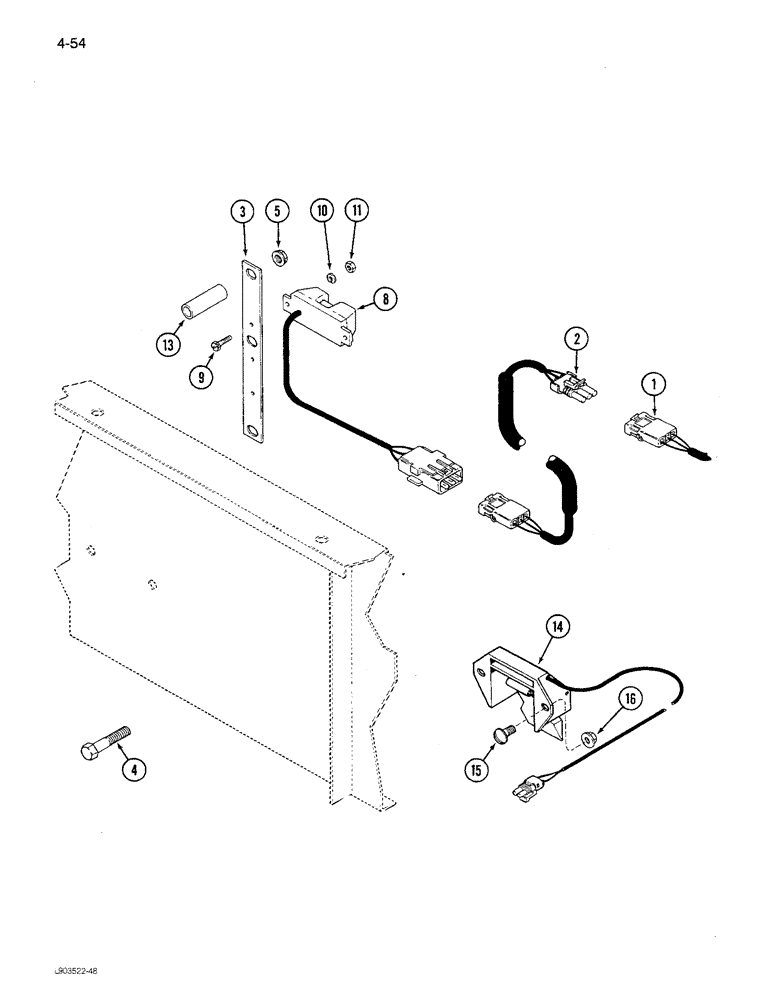

Запчасти Case IH 1680 (4-054) - GRAIN TANK LEVEL SENSOR (06) - ELECTRICAL

1

REF

INSTRUCTION

HARNESS - grain tank (See Figure 4-52)

1шт.

2

1338321C2

HARNESS

- tank level (If equipped)

1шт.

3

1338320C2

SUPPORT

- level sensor (If equipped)

2шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

4

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

4шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

8

84204C1

SENSOR

- grain tank level (If equipped)

1шт.

9

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- hex machine, No. 10-24 x 3/4 inch

2шт.

10

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

225-14110

NUT,#10-24

2шт.

13

65881H

SPACER,1/4" Pipe x 1 1/4"

- sensor support, 1/4 x 1-1/4 inch (If equipped)

4шт.

13

33847A

SPACER,1/4" Pipe x 1 13/16"

- sensor support, 1/4 x 1-13/16 inch (If equipped)

4шт.

14

1987377C1

SWITCH

- grain tank level

1шт.

15

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

16

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

1323817C1

LEVEL

KIT sensor

1шт.
