Запчасти Case IH 1680 (4-052) - GRAIN TANK HARNESS (06) - ELECTRICAL

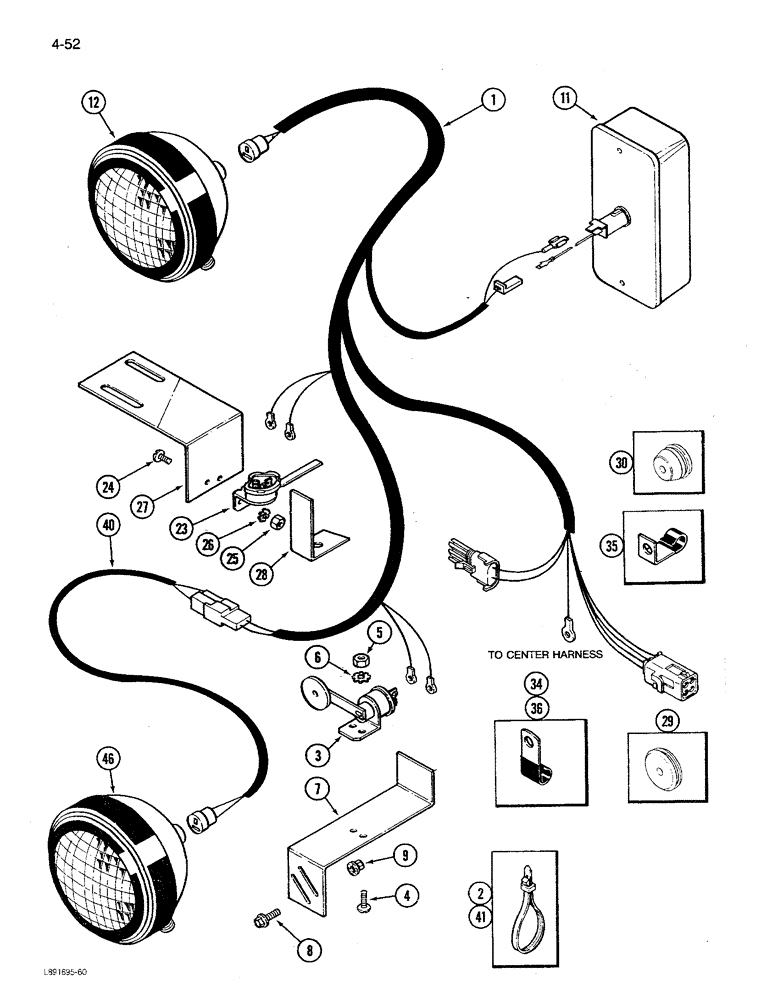

Схема запчастей Case IH 1680 - (4-052) - GRAIN TANK HARNESS (06) - ELECTRICAL
6
3
1
2
35
40
41
36
46
29
8
11
5
9
24
26
25
27
28
4
23
30
12
7
34

Артикул

Название

Примечание

Количество

1

245243C3

HARNESS

- grain tank

1шт.

2

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

3

91436C3

SWITCH

- unloader in

1шт.

4

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head machine, No. 10 NC x 3/4 inch

2шт.

5

225-14110

NUT,#10-24

2шт.

6

493-81001

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal/external lock, No. 10

2шт.

7

1338022C1

SUPPORT

BRACKET - unloader in switch

1шт.

8

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flange lock, 1/4 NC x 3/4 inch

2шт.

9

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

11

REF

INSTRUCTION

LAMP ASSEMBLY - warning, right front (See Figure 4-62)

1шт.

12

REF

INSTRUCTION

LAMP ASSEMBLY - grain tank (See Figure 4-56)

1шт.

23

537641R2

SWITCH ASSY

SWITCH - unloader out

1шт.

24

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- pan head machine, No. 10 x 1/2 inch

2шт.

25

225-13210

NUT,#10-32

2шт.

27

1338003C1

BRACKET

SUPPORT - unloader limit switch out

1шт.

28

1338004C1

BRACKET

BAR - unloader limit switch out

1шт.

29

195803C1

GROMMET

- grain bin

2шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- grain bin

1шт.

34

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness, 1-1/2 inch long x 13/32 inch hole

8шт.

35

370383R1

CLIP

- harness, 1-1/2 inch long x 15/32 inch hole

6шт.

36

362123R1

CLIP

- harness, 1-7/8 inch long x 15/32 inch hole

3шт.

40

91828C1

HARNESS

ASSEMBLY - unloader light

1шт.

41

702093C1

CABLE TIE

STRAP - harness retainer, unloader light harness

1шт.

46

REF

INSTRUCTION

LAMP ASSEMBLY - unloader (See Figure 4-56), unloader light harness

1шт.

1323817C1

LEVEL

KIT sensor, grain, tank, unloader light harness

1шт.

26

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

Выбрано товаров: 26
