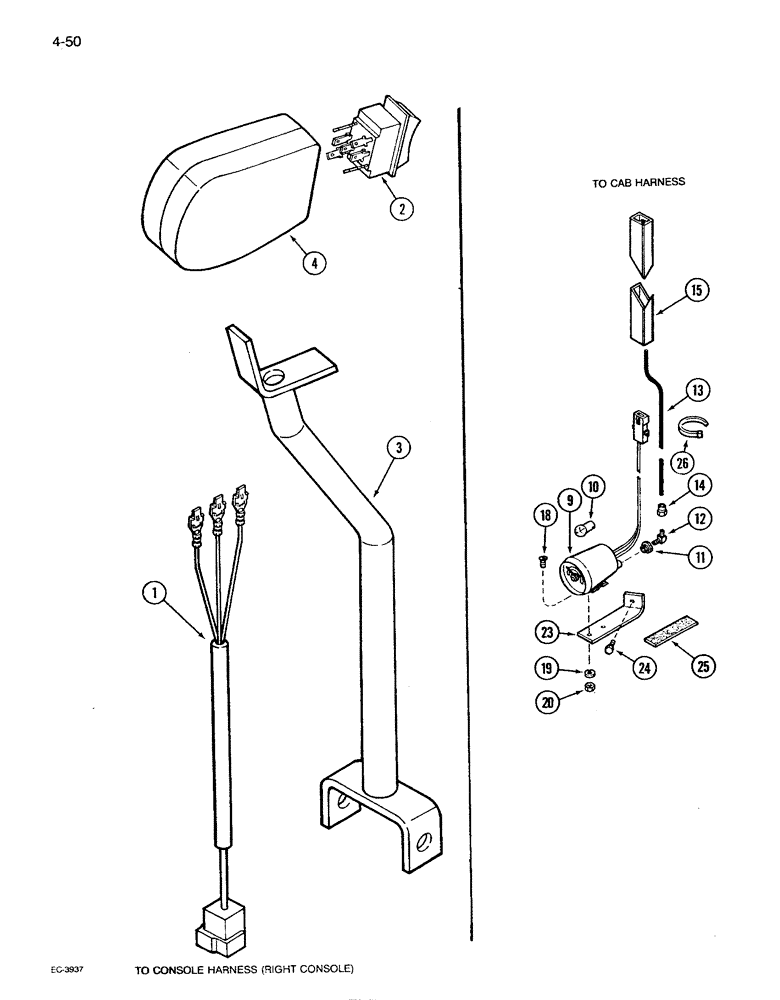

Запчасти Case IH 1680 (4-050) - HEADER LIFT HANDLE HARNESS (06) - ELECTRICAL

1

245245C2

HARNESS

- header lift handle

1шт.

2

91926C1

SWITCH

- header lift control

1шт.

3

REF

INSTRUCTION

ARM - propulsion control (See Figure 6-26)

1шт.

4

REF

INSTRUCTION

HANDLE - propulsion control arm (See Figure 6-26)

1шт.

9

1977144C3

GAUGE ASSY.

MONITOR ASSEMBLY - boost, Turbocharger, 30 PSI, Includes: Ref. 10, monitor

1шт.

10

28791R1

BULB

- light, No. 161, turbocharger boost monitor

1шт.

11

1989678C1

FITTING

REDUCER - fitting, 22 mm male to 1/8 inch female PT, turbocharger boost monitor

1шт.

12

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

- 90 degree, compression, 1/8 inch PT, turbocharger boost monitor

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - monitor, 160 inch (Order 1954063C1, cut to length), turbocharger boost

1шт.

1954063C1

PLASTIC-RUBBER TUBE,0.125" OD

TUBE - bulk, 100 foot roll, turbocharger boost monitor

1шт.

14

1977102C1

FITTING

CONNECTOR - tube retaining, turbocharger boost monitor

1шт.

15

1977142C1

CONDUIT

- harness and tubing, turbocharger boost monitor

1шт.

18

368-10810

SCREW,Sl Oval Hd, #8 - 32 x 5/8"

- oval head slotted, No. 8-32 x 5/8 inch, turbocharger boost monitor

2шт.

19

392-11008

LOCK WASHER,#8

turbocharger boost monitor #8

2шт.

20

225-13108

NUT,#8-32

Turbocharger boost monitor #8-32

2шт.

23

1979103C2

ANGLE

BRACKET - monitor support, turbocharger boost

1шт.

24

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch, turbocharger boost monitor'

1шт.

25

1979215C1

TAPE

- adhesive, turbocharger boost monitor

1шт.

26

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, turbocharger boost monitor

2шт.
