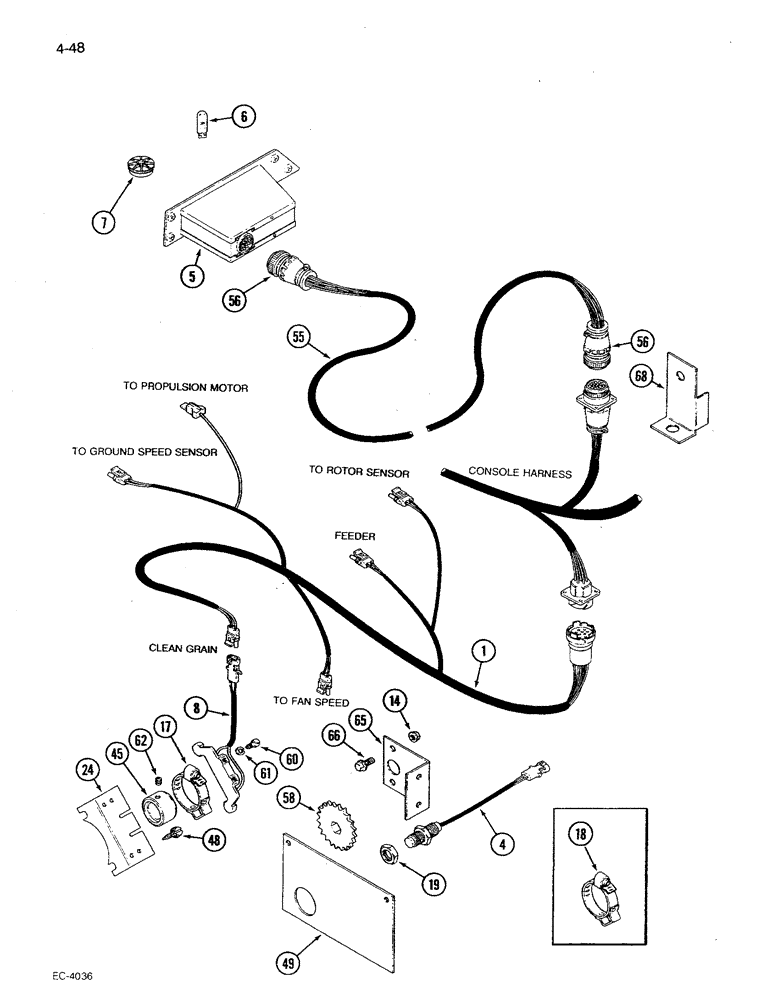

Запчасти Case IH 1680 (4-048) - SHAFT SPEED MONITOR CONTROL, P.I.N. JJC0117060 AND AFTER (06) - ELECTRICAL

1

1994837C1

HARNESS

HARNESS - shaft speed rear

1шт.

4

245193C2

SENSOR

TRANSMITTER - transducer (Feeder,ground speed, rotor and fan)

4шт.

5

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed, with decal, Includes: Ref. 6 and 7

1шт.

5

1935072C1

REMAN-ELECT MONITOR

1680 (S/N JJC0045689 & AFTER) , shaft speed, P.I.N. JJC0117060 AND AFTER (1/86-12/92)

1шт.

5

1935071C1

CORE-MONITOR

Return Number

1шт.

6

28628R1

BULB,C2F, #73, 14V

LAMP - trade No. 73, 14 volt

1шт.

7

178876C1

SUPPRESSOR

SUPPRESSOR - audible alarm

1шт.

8

245365C1

TRANSMITTER

TRANSMITTER - monitor control (For clean grain sensor)

1шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

1шт.

17

178800C1

CLAMP

MAGNET ASSEMBLY - sensor (For clean grain)

1шт.

18

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSEMBLY - sensor (For Straw chopper)

1шт.

19

84116C1

NUT

NUT - hex jam, 3/4 inch NC

1шт.

24

183869C3

SUPPORT

BRACKET - clean grain sensor

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

COLLAR ASSEMBLY - clean grain auger locking

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - tapping, 1/4-14 x 1/2 inch

4шт.

49

1979323C1

SHIELD

COVER - clean grain auger sensor

1шт.

55

245242C1

HARNESS

HARNESS ASSEMBLY - shaft speed front, Includes: Ref. 56

1шт.

56

131498C1

ELEC CONNECTOR

CONNECTOR - harness

2шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor (Without rock trap or feeder reverser)

1шт.

60

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - slotted machine, No. 8-32 x 3/8 inch

3шт.

61

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

62

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4 NF x 3/8 inch

1шт.

65

1321392C2

SUPPORT

SUPPORT - feeder sensor (Without rock trap or feeder reverser)

1шт.

66

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

68

1317950C1

SUPPORT

SUPPORT - feeder sensor (With rock trap or feeder reverser)

1шт.
