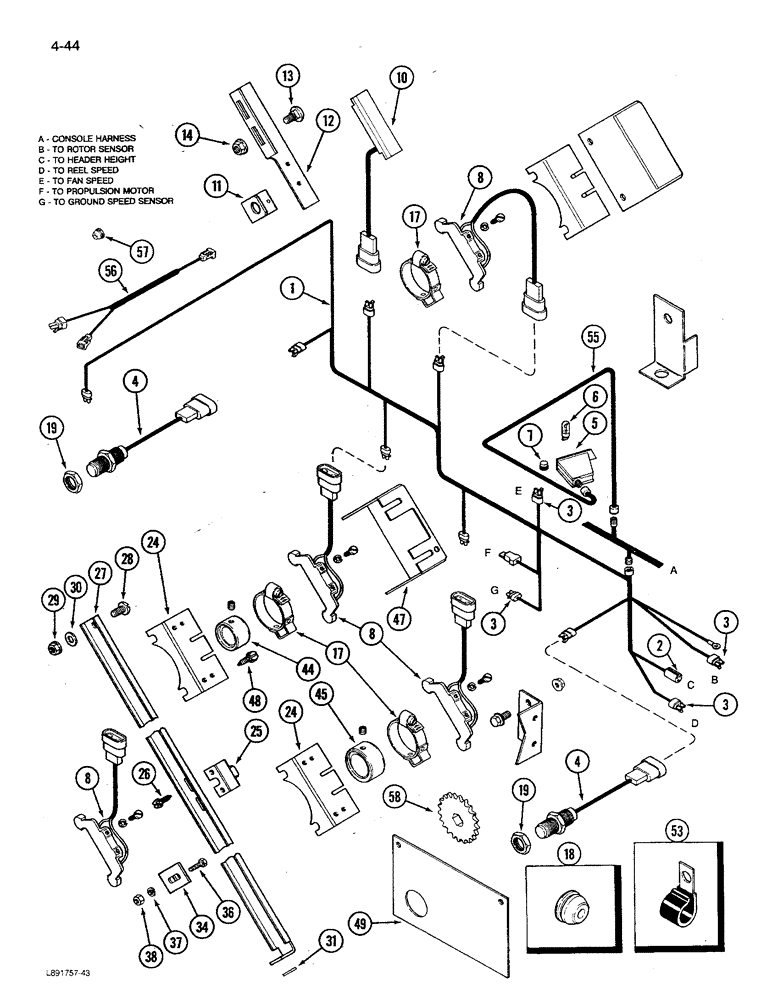

Запчасти Case IH 1680 (4-044) - SHAFT SPEED MONITOR CONTROL HARNESS, COMBINES WITHOUT STRAW CHOPPER PRIOR TO P.I.N. JJC0117060 (06) - ELECTRICAL

1

245238C1

HARNESS

HARNESS - shaft speed rear, Includes: Ref. 2 and 3, Start Serial: JJC0047301

1шт.

1

1983535C1

HARNESS

HARNESS - shaft speed rear (P.I.N. JJC0047301 - JJC0117059), Includes: Ref. 2 and 3

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

CONNECTOR - harness (Replaces 225161C1)

1шт.

3

225161C1

ADAPTER

CONNECTOR - harness (Replaces 245482C1)

1шт.

4

245193C2

SENSOR

TRANSMITTER - transducer (for straw spreader and feeder)

2шт.

5

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed (With decal), Includes: Ref. 6

1шт.

5

1935072C1

REMAN-ELECT MONITOR

1680 (S/N JJC0045689 & AFTER) , shaft speed, COMBINES W/O STRAW CHOPPER PRIOR TO P.I.N. JJC0117060 (1/86-12/92)

1шт.

5

1935071C1

CORE-MONITOR

Return Number

1шт.

6

28628R1

BULB,C2F, #73, 14V

LAMP - trade No. 73, 14 volt

1шт.

7

178876C1

SUPPRESSOR

SUPPRESSOR - audible alarm

1шт.

8

245365C1

TRANSMITTER

TRANSMITTER - monitor control (for rotary air screen, tailings auger, clean grain sensor, beater)

4шт.

10

245364C1

SWITCH

SWITCH - monitor control (for shoe)

1шт.

11

187996C1

MAGNET

MAGNET ASSEMBLY - sensor (for shoe)

1шт.

12

187998C1

SUPPORT

SUPPORT - shoe transmitter

1шт.

13

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

2шт.

17

178800C1

CLAMP

MAGNET ASSEMBLY - sensor (grain, tailings auger, beater)

3шт.

18

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - harness

1шт.

19

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT - hex lock, 3/4 inch NF Special

2шт.

24

183869C3

SUPPORT

BRACKET - clean grain sensor

2шт.

25

196987C1

MAGNET

MAGNET ASSEMBLY - sensor (for rotary air screen)

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - pan head slotted tap, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

CHANNEL - rotary air screen sensor mounting

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW - slotted truss head, 5/16 NC x 3/4 inch

4шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

4шт.

30

179454C1

RUBBER WASHER

WASHER - rubber

1шт.

31

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

34

1301560C1

SUPPORT

ANGLE - rotary air screen sensor adjustment

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

36

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW - slotted truss head, 5/16 NC x 3/4 inch

1шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

38

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

1шт.

44

1301135C1

COLLAR

COLLAR - tailings elevator shaft locking

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

COLLAR ASSEMBLY - clean grain auger locking

1шт.

47

181208C2

COVER

COVER - tailings sensor bracket

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - hex washer head tap, 1/4-14 x 1/2 inch

6шт.

49

1979323C1

SHIELD

COVER ASSEMBLY - clean grain auger sensor

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness, 1-3/8 inch long x 13/32 inch hole

1шт.

53

362666R1

CLIP

CLIP - harness, 2-1/4 inch long x 15/32 inch hole

1шт.

53

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness, 1-1/2 inch long x 13/32 inch hole

1шт.

53

370383R1

CLIP

CLIP - harness, 1-1/2 inch long x 15/32 inch hole

1шт.

55

245242C1

HARNESS

HARNESS ASSEMBLY - shaft speed front (Includes Ref. 69)

1шт.

56

92151C1

HARNESS

HARNESS ASSEMBLY - monitor (Used without straw spreader)

1шт.

57

195803C1

GROMMET

GROMMET - tube, 3/8 inch OD (Used with Ref. 56)

1шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor (combines without rock trap or feeder reverser)

1шт.
