(4-036) - MAIN CENTER HARNESS, P.I.N. JJC0047058 THROUGH JJC0117059

Запчасти Case IH 1680 (4-036) - MAIN CENTER HARNESS, P.I.N. JJC0047058 THROUGH JJC0117059 (06) - ELECTRICAL

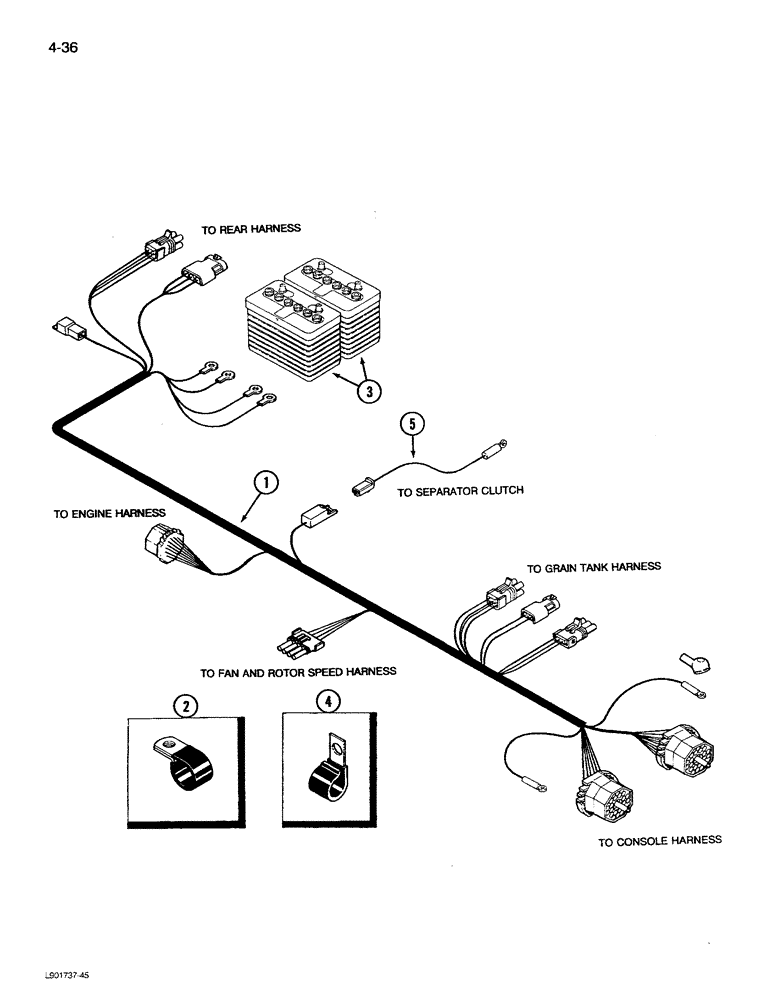

Схема запчастей Case IH 1680 - (4-036) - MAIN CENTER HARNESS, P.I.N. JJC0047058 THROUGH JJC0117059 (06) - ELECTRICAL
4
5
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1983382C1

HARNESS

ASSEMBLY - center, main

1шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated closed, 15/32 inch mounting hole

1шт.

3

REF

INSTRUCTION

BATTERY - 12 volt (See Figures 4-84, 4-86)

2шт.

4

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness

2шт.

5

187736C1

CABLE

- switch (To separator clutch valve)

1шт.

Выбрано товаров: 5
