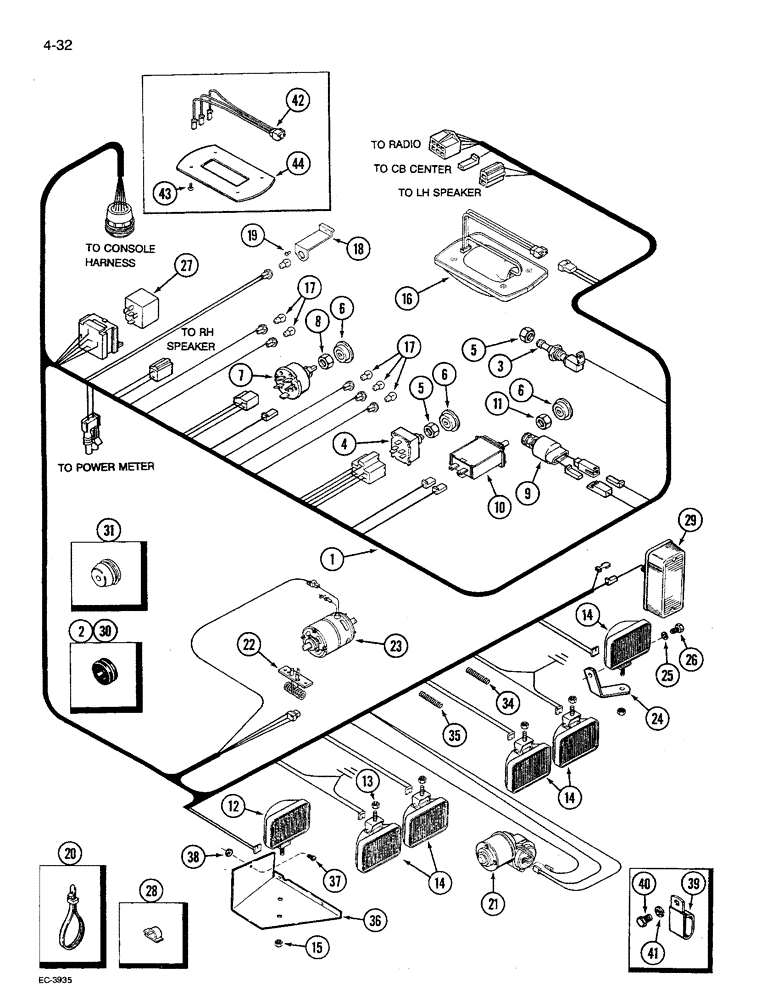

Запчасти Case IH 1680 (4-032) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C5

HARNESS

ASSEMBLY - cab roof, Start Serial: JJC0117060

1шт.

1

1994715C1

HARNESS

ASSEMBLY - cab roof, Serial Range: -JJC0117060

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome light control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam, 7/16 inch NC

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam, 7/16 inch NC

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam, 7/16 inch NC

2шт.

12

91666C91

INTERIOR LIGHT

LAMP ASSEMBLY - headlight (40 x 7 Halogen flood), Start Serial: JJC0117060

1шт.

12

245555C1

LAMP

ASSEMBLY - worklight, right outer, Serial Range: -JJC0117060

1шт.

13

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

1шт.

14

245897C91

LAMP, WORK

LIGHT ASSEMBLY - work light and outer flood light

5шт.

15

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

5шт.

16

REF

INSTRUCTION

LIGHT ASSEMBLY - dome (If equipped) (See Figure 4-96)

1шт.

17

A14553

BULB

- lamp, No. 57

5шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - pan head slotted, No. 8-18 x 1/2 inch

5шт.

20

111619C1

STRAP

- cable retaining

6шт.

21

REF

INSTRUCTION

WIPER ASSEMBLY - (See Figure 4-98)

1шт.

22

1255876C1

RESISTOR

ASSEMBLY - blower

1шт.

23

142990C2

MOTOR, ELECTRIC

MOTOR - blower, 12 volt, DC, PM

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1680 S/N JJC0045689 & Aft., Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

ANGLE - light support left

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

326-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

1шт.

27

146461C1

RELAY

- electrical, air conditioning

1шт.

28

169850C1

CLIP

- harness (plastic)

6шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning (See Figure 4-62)

1шт.

30

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- deck harness, right

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, left

1шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch (Order R43250 and cut to length)

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch (Order R43250 and cut to length)

2шт.

36

1283449C3

BRACKET

ANGLE - light shield and mounting bracket right

1шт.

37

436746

SCREW

- pan head, No. 10 NF x 1/4 inch

2шт.

38

225-14110

NUT,#10-24

1шт.

39

371036R1

CLIP

- harness

1шт.

40

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

1983386C1

HARNESS

- dome light adapter

1шт.

43

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - pan head slotted tap, 8-18 x 1-1/2 inch

4шт.

44

1979628C1

LARGE PLATE

PLATE - dome light

1шт.
