(4-030) - CONSOLE BACK LIGHTING HARNESS, PRIOR TO P.I.N. JJC0047058

Запчасти Case IH 1680 (4-030) - CONSOLE BACK LIGHTING HARNESS, PRIOR TO P.I.N. JJC0047058 (06) - ELECTRICAL

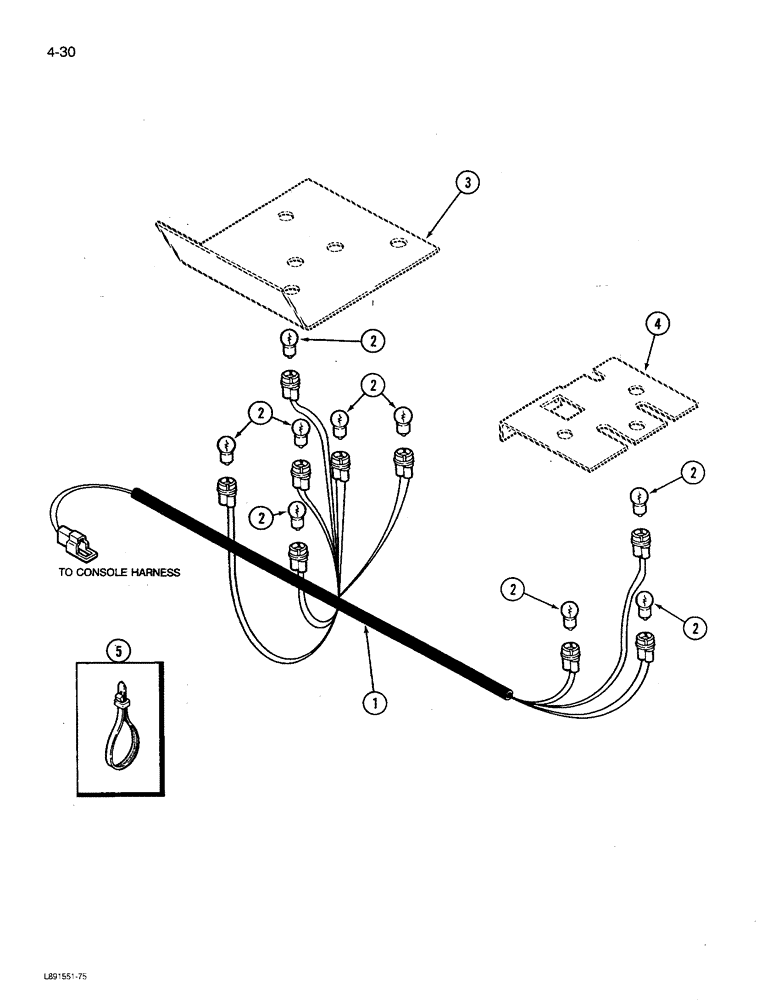

Схема запчастей Case IH 1680 - (4-030) - CONSOLE BACK LIGHTING HARNESS, PRIOR TO P.I.N. JJC0047058 (06) - ELECTRICAL
2
2
1
4
2
2
3
5
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245231C1

HARNESS

ASSEMBLY - console backlighting

1шт.

2

A14553

BULB

- lamp, No. 57

9шт.

3

REF

INSTRUCTION

SUPPORT - backlight (See Figure 9G-2)

1шт.

4

REF

INSTRUCTION

SUPPORT - backlight (See Figure 9G-2)

1шт.

5

702093C1

CABLE TIE

STRAP - cable retaining

1шт.
