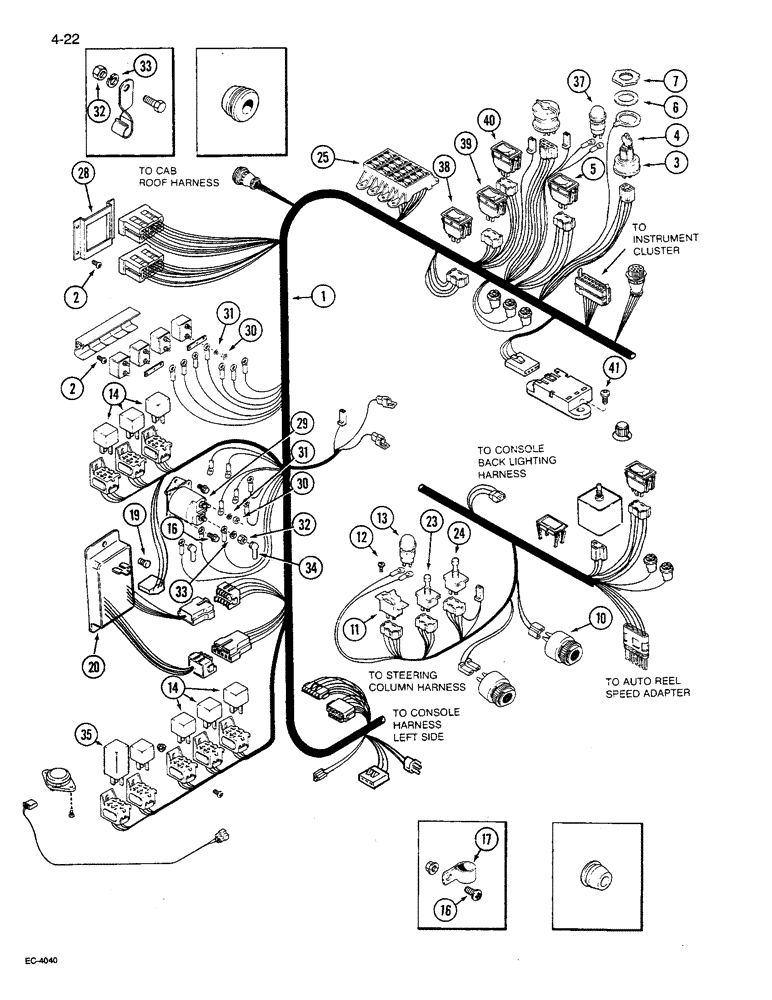

Запчасти Case IH 1680 (4-022) - CONSOLE HARNESS, RIGHT SIDE, P.I.N. JJC0117060 AND AFTER (06) - ELECTRICAL

1

1994820C1

HARNESS

- console

1шт.

2

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

10шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

3

1252476C1

SWITCH

ASSEMBLY - key starting

1шт.

4

131313C1

KEY, IGNITION

KEY - starting switch

1шт.

5

245219C1

SWITCH

ASSEMBLY - rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, 19/32 x 1 x 1/8 inch

1шт.

7

365502R1

NUT

- mounting

1шт.

10

245854C1

BUZZER

- alarm

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval head Phillips, No. 6 NC x 5/8 inch

2шт.

13

453453C1

SWITCH

ASSEMBLY - feeder reverser (See Figure 4-44)

1шт.

14

146461C1

RELAY

- 30 ampere

7шт.

16

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

7шт.

17

299277C91

CLIP

- console harness

2шт.

19

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

3шт.

20

1994871C1

GOVERNOR

SUPPRESSOR - central load dump

1шт.

23

245633C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder clutch, (Without reverser)

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder clutch, (With reverser)

1шт.

24

245632C1

SWITCH

ASSEMBLY - separator clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK - fuse (See Figure 4-80)

1шт.

NSS

NOT SOLD SEPARAT

SOCKET - relay (Order 1994820C1)

6шт.

NSS

NOT SOLD SEPARAT

MODULE - feedback (Order 1994820C1)

2шт.

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting (Order 1994820C1)

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

1шт.

35

1994819C1

RELAY

- time delay

1шт.

37

453453C1

SWITCH

ASSEMBLY - ether start push button

1шт.

38

245012C1

SWITCH

ASSEMBLY - 4 wheel drive

3шт.

39

245012C1

SWITCH

ASSEMBLY - variable propulsion (two speed)

3шт.

40

245219C1

SWITCH

ASSEMBLY - fan speed

1шт.

41

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan head self tapping, No. 8-18 x 1/2 inch

2шт.
