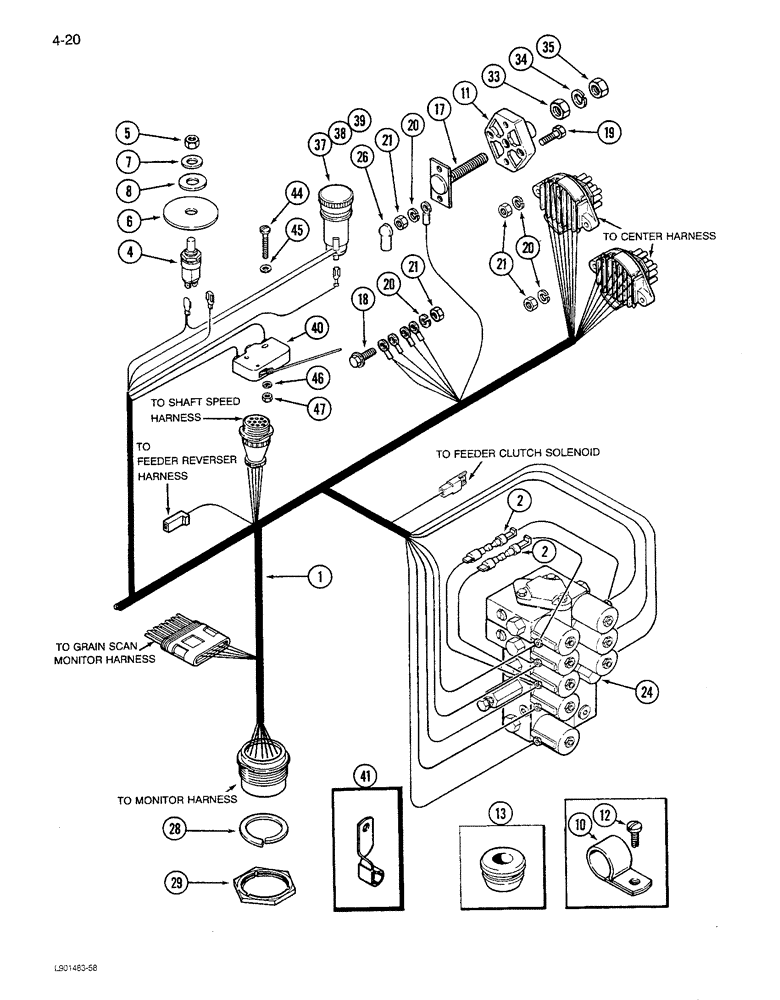

Запчасти Case IH 1680 (4-020) - CONSOLE HARNESS, LEFT CONSOLE, P.I.N. JJC0047301 THROUGH JJC0117059 (06) - ELECTRICAL

1

1983540C1

HARNESS

ASSEMBLY - console

1шт.

2

548239R2

RECTIFIER

DIODE ASSEMBLY - console harness

2шт.

4

1983341C1

SWITCH

ASSEMBLY - parking brake warning light

1шт.

5

68107H

LOCK NUT

- light switch, brake

1шт.

6

166817C1

WASHER

- light switch

1шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

8

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - console harness, front

2шт.

10

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness

11шт.

11

468647C1

BLOCK ASSY.

BLOCK - junction

1шт.

12

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - pan head tap, 1/4 x 1/2 inch

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness

1шт.

17

1964561C1

BAR

- junction block buss

1шт.

18

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flange lock, 1/4 NC x 3/4 inch

2шт.

19

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

10шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-70)

1шт.

26

399470R1

BOOT

- cable

1шт.

28

490691C1

LOCK WASHER,#18 Shell

- lock, harness connector

1шт.

29

490692C1

LOCK NUT,#18 Shell

- hex, harness connector

1шт.

33

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

37

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigarette, Includes: Ref. 38 and 39

1шт.

38

378781R1

LIGHTER, CIGARETTE

LIGHTER - pop-up unit

1шт.

39

NSS

NOT SOLD SEPARAT

SOCKET - lighter (Order 245576C1)

1шт.

40

1310827C1

SWITCH

ASSEMBLY - third gear lockout (Used with 2 speed transmission)

1шт.

41

363660R1

CLIP

- harness

1шт.

44

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- pan head machine, No. 6 x 1-1/4 inch

2шт.

45

103337

WASHER,#6

4шт.

46

138526

LOCK WASHER

- internal lock, No. 6

4шт.

47

134530

NUT,Hex, #6 - 32

Machine screw #6-32

4шт.
