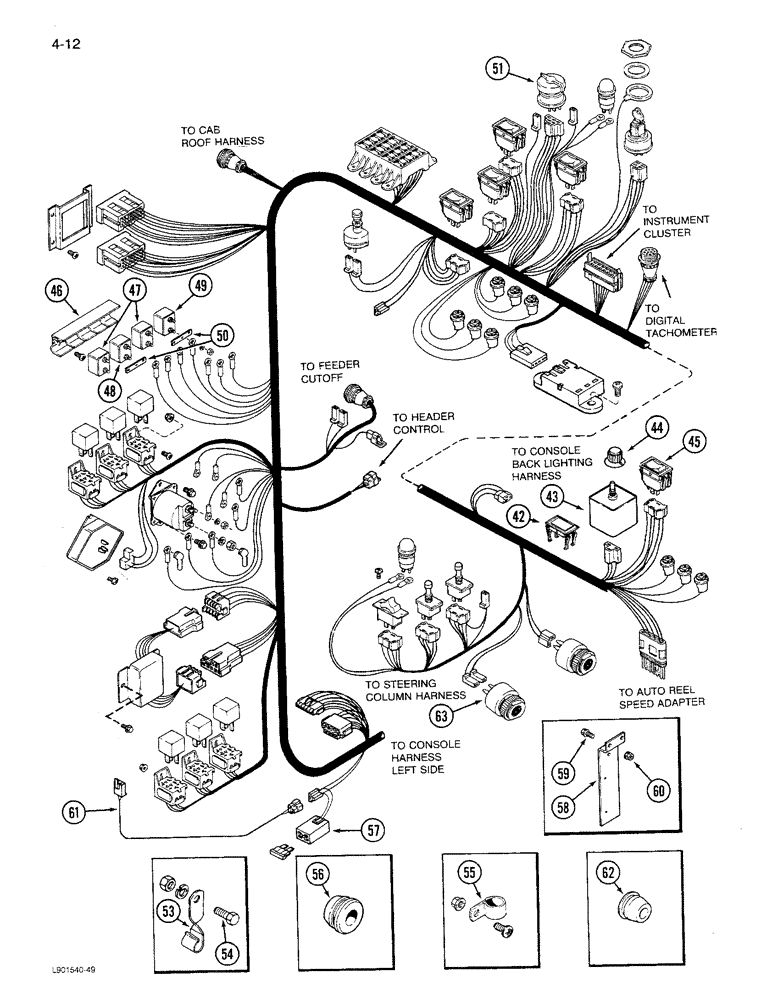

Запчасти Case IH 1680 (4-012) - CONSOLE HARNESS, RIGHT CONSOLE, PRIOR TO P.I.N. JJC0047301 (CONTD) (06) - ELECTRICAL

42

245334C1

PLUG

- panel switch cover, continued

1шт.

43

245653C2

SWITCH

ASSEMBLY - reel speed control, manual

1шт.

44

1301036C1

BUTTON

KNOB - reel speed control

1шт.

45

245509C1

SWITCH

ASSEMBLY - reel, fore and aft (If equipped)

1шт.

46

245871C1

BRACKET

- system breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklight system, 30 ampere

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - rotor system, 15 ampere

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab system, 20 ampere

1шт.

50

245861C1

BAR

- breaker bus

1шт.

51

107200C2

LIGHT SWITCH

SWITCH ASSEMBLY - headlight

1шт.

53

363660R1

CLIP

- console harness, twisted

1шт.

54

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

55

299277C91

CLIP

- console harness

2шт.

56

92065C1

GROMMET

- rubber, console harness

1шт.

57

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

58

1347059C1

SUPPORT

- seat relay

1шт.

59

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

60

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

61

1345209C1

HARNESS

- seat switch

1шт.

62

195804C1

GROMMET

- 1/2 inch

1шт.

63

1983568C1

BUZZER

ALARM - grain tank level

1шт.
