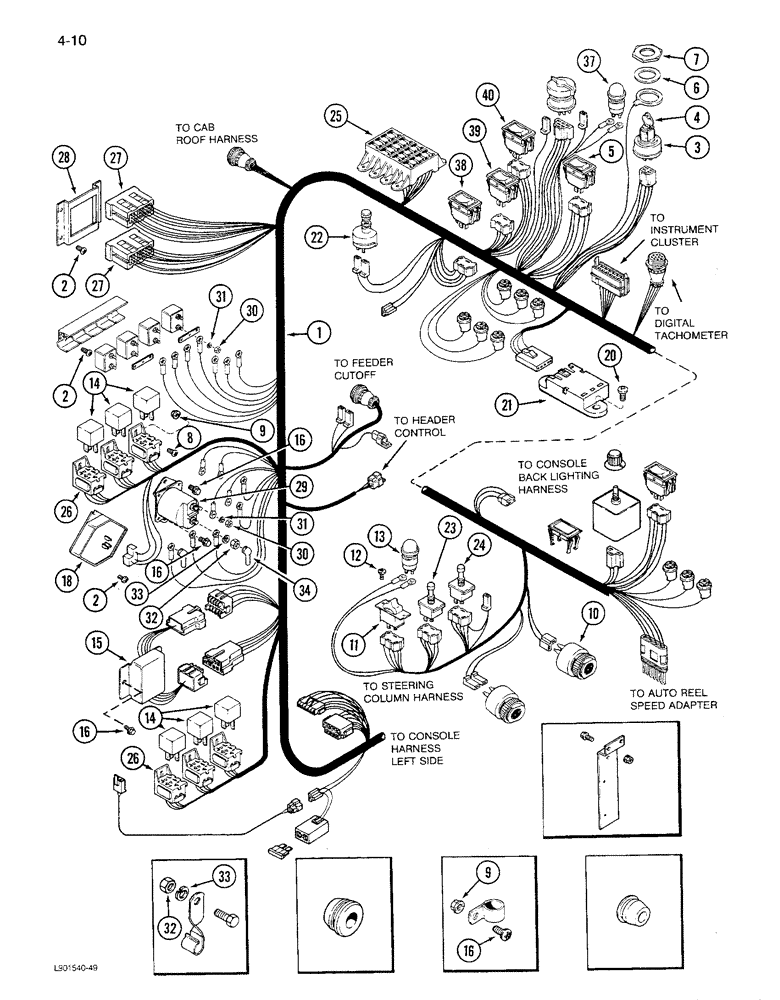

Запчасти Case IH 1680 (4-010) - CONSOLE HARNESS, RIGHT CONSOLE, PRIOR TO P.I.N. JJC0047301 (06) - ELECTRICAL

1

1964954C5

HARNESS

ASSEMBLY - console

1шт.

2

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex head tap, No. 10 x 1/2 inch

8шт.

3

1252476C1

SWITCH

ASSEMBLY - key starting

1шт.

4

131313C1

KEY, IGNITION

KEY - starting switch

1шт.

5

245219C1

SWITCH

ASSEMBLY - rotor speed

1шт.

6

375431R1

LOCK WASHER

- internal lock

1шт.

7

365502R1

NUT

- mounting

1шт.

8

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

3шт.

9

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

5шт.

10

245854C1

BUZZER

- alarm

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- oval head machine, No. 6-32 x 5/8 inch

2шт.

13

REF

INSTRUCTION

SWITCH ASSEMBLY - feeder reverser (See Figure 4-74)

1шт.

14

1-7877

RELAY

- electrical

6шт.

15

187609C2

RECTIFIER

ASSEMBLY - diode

1шт.

16

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - hex washer head tap, 1/4 NC x 1/2 inch

6шт.

18

245835C1

SUPPRESSOR

- central load dump

1шт.

20

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan head tap, No. 8 x 1/2 inch

2шт.

21

121770C2

TRANSMITTER

MODULE - coolant

1шт.

22

121705C91

SWITCH

ASSEMBLY - dimmer, panel (If equipped)

1шт.

23

245633C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder clutch (Without reverser)

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH ASSEMBLY - feeder reverser

1шт.

24

245632C1

SWITCH

ASSEMBLY - separator clutch

1шт.

25

REF

INSTRUCTION

BLOCK - fuse (See Figure 4-80)

1шт.

26

NSS

NOT SOLD SEPARAT

SOCKET - relay (Order 1964954C3)

6шт.

27

NSS

NOT SOLD SEPARAT

MODULE - feedback (Order 1964954C3)

2шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - module mounting (Order 1964954C3)

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

2шт.

37

453453C1

SWITCH

ASSEMBLY - ether start push button

1шт.

38

245012C1

SWITCH

ASSEMBLY - 4 wheel drive (If equipped)

1шт.

39

245012C1

SWITCH

ASSEMBLY - variable propulsion

1шт.

For combines with two speed propulsion motor.

1шт.

40

245219C1

SWITCH

ASSEMBLY - fan speed

1шт.
