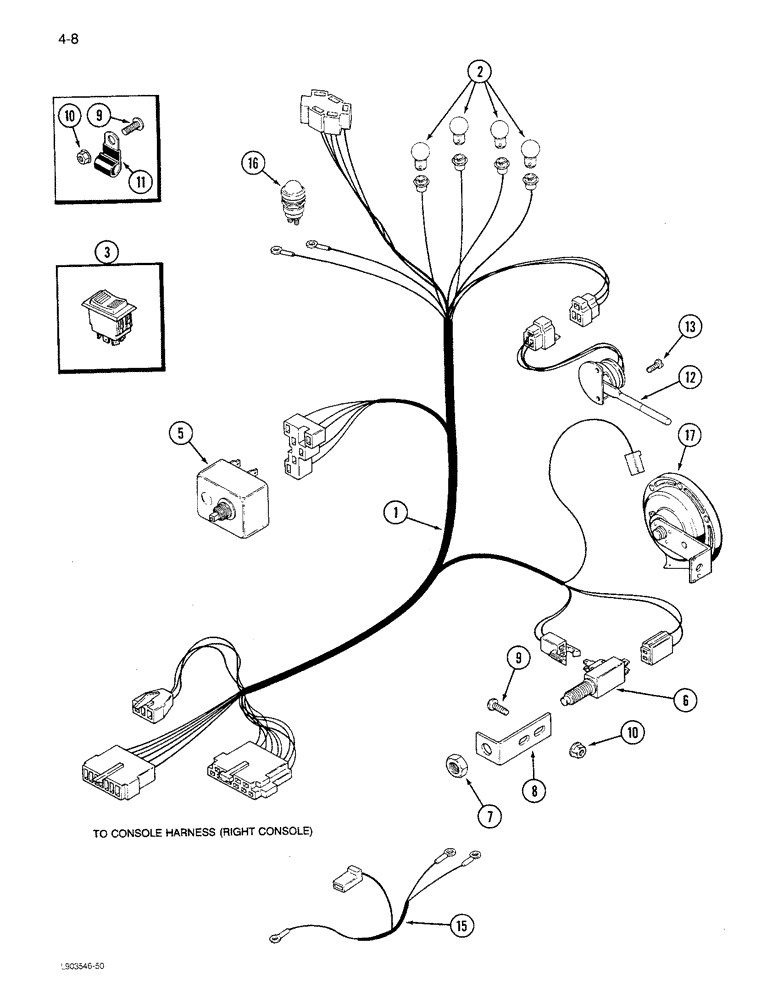

Запчасти Case IH 1680 (4-008) - STEERING COLUMN HARNESS (06) - ELECTRICAL

1

91822C3

HARNESS

ASSEMBLY - steering column

1шт.

2

26069R1

BULB

- lamp, No. 12

4шт.

3

245513C1

SWITCH

- dimmer (If equipped)

1шт.

5

131066C91

SWITCH

- turn signal

1шт.

6

131107C1

SWITCH

- neutral start

1шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

1327674C1

BRACKET

ANGLE - switch mounting

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

11

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness, steering column

6шт.

12

245635C1

SWITCH

- unloader tube control

1шт.

13

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- pan head machine, No. 8 x 1/2 inch

3шт.

15

1964933C1

HARNESS

ASSEMBLY - horn

1шт.

16

453453C1

SWITCH

ASSEMBLY - horn

1шт.

17

166166R1

HORN

- alert

1шт.
