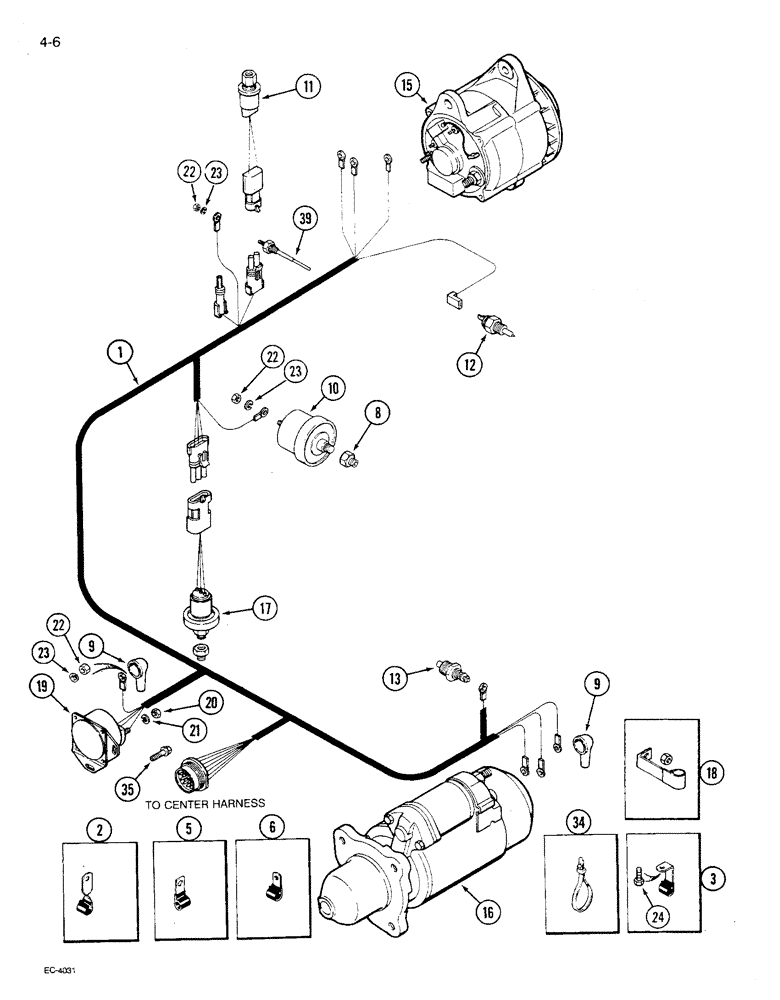

Запчасти Case IH 1680 (4-006) - ENGINE HARNESS, P.I.N. JJC0117060 AND AFTER (06) - ELECTRICAL

1

100827A1

HARNESS

- engine

1шт.

2

363660R1

CLIP

- engine block, rear

1шт.

3

A185958

CLAMP,7/8", 1/2" Bolt

- engine harness

2шт.

5

362123R1

CLIP

- engine harness

3шт.

6

370383R1

CLIP

- harness, long

1шт.

8

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

- pipe, 3/4 male x 1/2 inch female

1шт.

9

399470R1

BOOT

- cable

2шт.

10

1341330C1

TRANSMITTER

SWITCH - sender, oil pressure

1шт.

11

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

12

1345488C1

PRESSURE SWITCH

SWITCH - coolant, high temperature

1шт.

13

121756C2

SENSOR

SENDER - coolant temperature

1шт.

15

REF

INSTRUCTION

ALTERNATOR - (See Figure 4-90)

1шт.

16

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-92)

1шт.

17

1964960C1

PRESSURE SWITCH

SWITCH - pressure header lift

1шт.

18

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - engine harness, front cover

1шт.

19

A39079

SOLENOID

- ignition

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

225-14210

NUT,#10-32

3шт.

23

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

24

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

34

291207C1

CLAMP

STRAP - nylon retaining

3шт.

35

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

39

A145513

SENSOR

- level, coolant

1шт.
