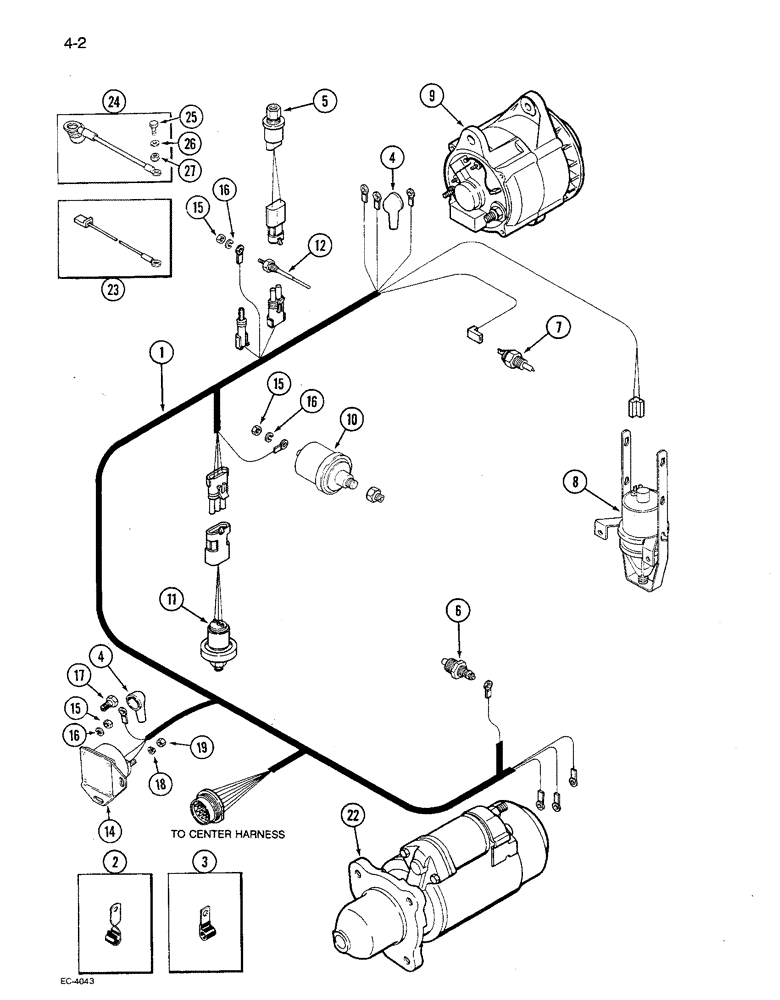

Запчасти Case IH 1680 (4-002) - ENGINE HARNESS, PRIOR TO P.I.N. JJC0047058 (06) - ELECTRICAL

1

1964970C3

HARNESS

- engine

1шт.

1

245934C3

HARNESS

ASSEMBLY - engine

1шт.

2

363660R1

CLIP

- engine harness

1шт.

3

362123R1

CLIP

- engine harness

4шт.

4

399470R1

BOOT

- cable

3шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, compressor

1шт.

6

121756C2

SENSOR

SWITCH - coolant temperature

1шт.

7

130861C1

SWITCH

- coolant, high temperture

1шт.

8

REF

INSTRUCTION

SOLENOID - ether injection (See Figure 2-26)

1шт.

9

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-90)

1шт.

10

1341330C1

TRANSMITTER

SWITCH - sender, oil pressure

1шт.

11

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.

12

A145513

SENSOR

SWITCH - probe, coolant level

1шт.

14

A39079

SOLENOID

- ignition

1шт.

15

225-14210

NUT,#10-32

3шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

17

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex head tap, No. 10 NC x 1/2 inch

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-92)

1шт.

23

1977185C1

HARNESS

- alternator

1шт.

24

1977135C1

HARNESS

- alternator output

1шт.

25

313-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

26

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

- flat, 1/4 x 1/2 x 3/64 inch

1шт.

27

325-104

NUT,1/4"-20, G5

- hex, 1/4 inch NC

1шт.
