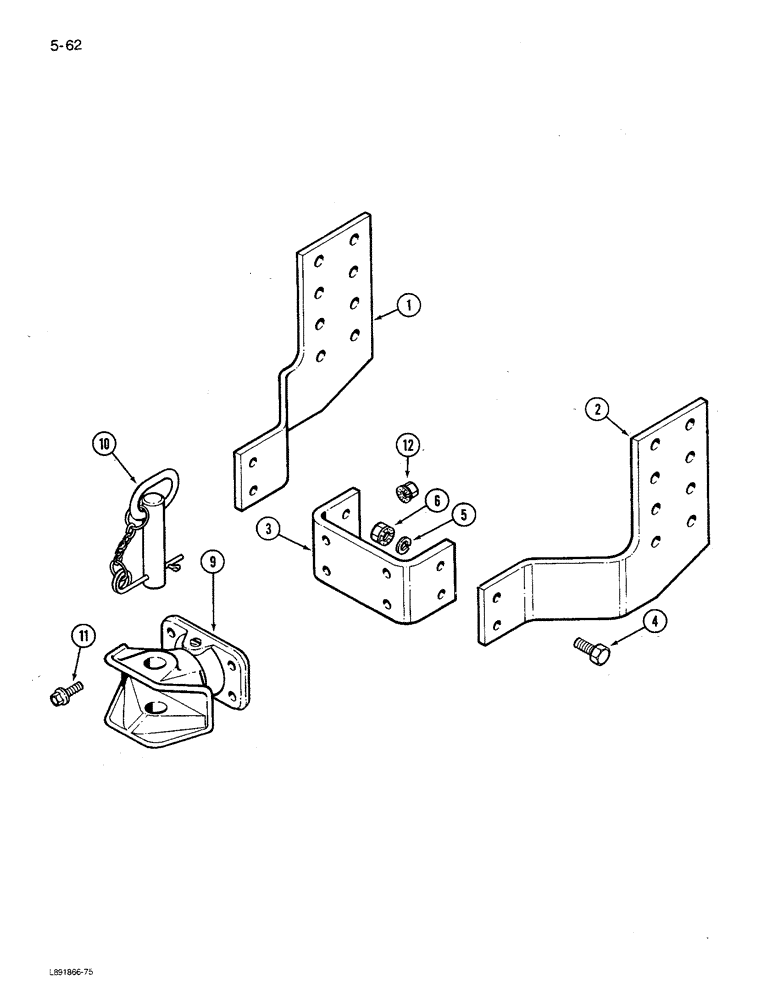

Запчасти Case IH 1680 (5-062) - TRAILER HITCH (04) - STEERING

1

1311092C3

SUPPORT

- trailer hitch, left (Shown)

1шт.

1

1979841C1

SUPPORT

- trailer hitch, left

1шт.

For use with power guide axle.

1шт.

2

1311093C3

SUPPORT

- trailer hitch, right (Shown)

1шт.

2

1979842C1

SUPPORT

- trailer hitch, right

1шт.

For use with power guide axle.

1шт.

3

1311094C1

BRACKET

CHANNEL - combine tow

1шт.

4

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

9

1311089C91

HOOK

ASSEMBLY - hitch, Includes: Ref. 10

1шт.

10

1311090C1

PIN

- hook, hitch

1шт.

11

204813C1

BOLT,Hex Serr Flg, 1/2" - 13 x 2"

- hex flange, 1/2 NC x 1-1/2 inch

4шт.

12

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.
