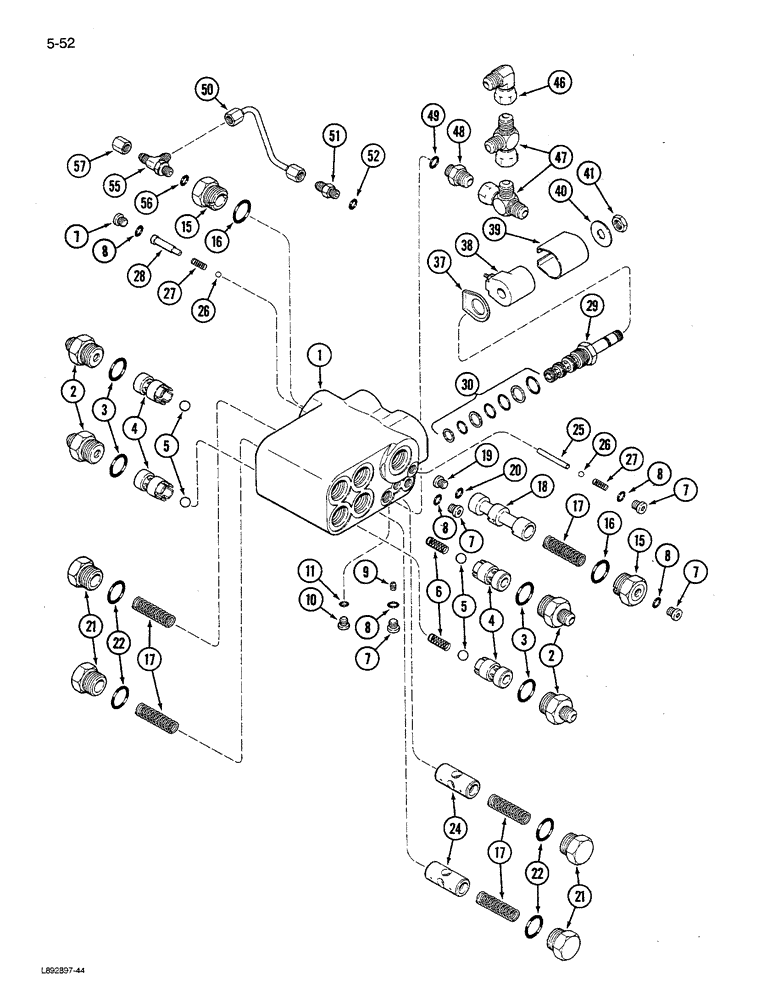

Запчасти Case IH 1680 (5-052) - SELECTOR VALVE ASSY, POWER GUIDE AXLE, CORN & GRAIN, COMBINE RICE COMBINE PRIOR TO P.I.N. JJC0047918 (04) - STEERING
№
Артикул
Название
Примечание
Количество
1978000C1
VALVE
ASSEMBLY - selector, steering, Includes: Ref. 1 - 41
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
380632R1
HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring
ADAPTER - straight, 3/4-16 x 1-1/16-12 inch thread
4шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 59/64 ID x 7/8 inch
4шт.
4
NSS
NOT SOLD SEPARAT
SEAT - check ball
4шт.
5
NSS
NOT SOLD SEPARAT
BALL - check, 9/16 inch diameter
4шт.
6
NSS
NOT SOLD SEPARAT
SPRING - check, reverse
2шт.
7
1288962C1
PLUG
- hex socket
6шт.
8
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
7шт.
9
NSS
NOT SOLD SEPARAT
PLUG - orifice, 1/16-27 inch PT
1шт.
10
218-5151
PLUG,Hex Hd, 5/16"-24 ORB
- hex head, 5/16-24 inch NF
1шт.
11
218-5001
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
2-1, .239" ID x .064" Thk
1шт.
15
1970176C1
PLUG
- hex special
2шт.
16
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 59/64 ID x 7/8 inch
2шт.
17
NSS
NOT SOLD SEPARAT
SPRING - spool, flow divider and selector
5шт.
18
NSS
NOT SOLD SEPARAT
SPOOL - selector
1шт.
19
NSS
NOT SOLD SEPARAT
PLUG - orifice
1шт.
20
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
21
1979118C1
PLUG
- hex, flow divider spool
4шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 59/64 ID x 7/8 inch
4шт.
24
NSS
NOT SOLD SEPARAT
SPOOL - flow divider
2шт.
25
NSS
NOT SOLD SEPARAT
PIN - dowel
1шт.
26
211-208
BALL,5/16" Dia
- check
2шт.
27
NSS
NOT SOLD SEPARAT
SPRING - shuttle, low priority
2шт.
28
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
29
187849C1
SOLENOID VALVE
VALVE ASSEMBLY - solenoid, four way, Includes: Ref. 30
1шт.
30
187850C1
SEAL KIT
SERVICE KIT - washer and o-ring, valve
1шт.
1345300C1
KIT
SOLENOID KIT - coil, Includes: Ref. 37 - 41
1шт.
37
NSS
NOT SOLD SEPARAT
PLATE - cover
1шт.
38
NSS
NOT SOLD SEPARAT
COIL - solenoid
1шт.
39
NSS
NOT SOLD SEPARAT
HOUSING - coil
1шт.
40
NSS
NOT SOLD SEPARAT
PLATE - name
1шт.
41
NSS
NOT SOLD SEPARAT
NUT - hex, thin
1шт.
46
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
- 90 degree swivel, 3/4-16 inch thread
1шт.
47
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
ASSEMBLY - swivel, 3/4-16 inch thread
2шт.
48
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
ADAPTER - short, 3/4-16 x 9/16 inch thread
1шт.
49
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
50
1970140C1
TUBE,4.78 mm ID
ASSEMBLY - pressure, charge
1шт.
51
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
CONNECTOR - straight, 7/16-20 inch thread
1шт.
52
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
55
9411128
TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run
ASSEMBLY - adjustable, 7/16-20 inch thread
1шт.
56
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
57
218-752
CAP,37 Degree, 7/16"-20
Hex, 1/4 inch tube 37º, 7/16"-20
1шт.
Выбрано товаров: 43
