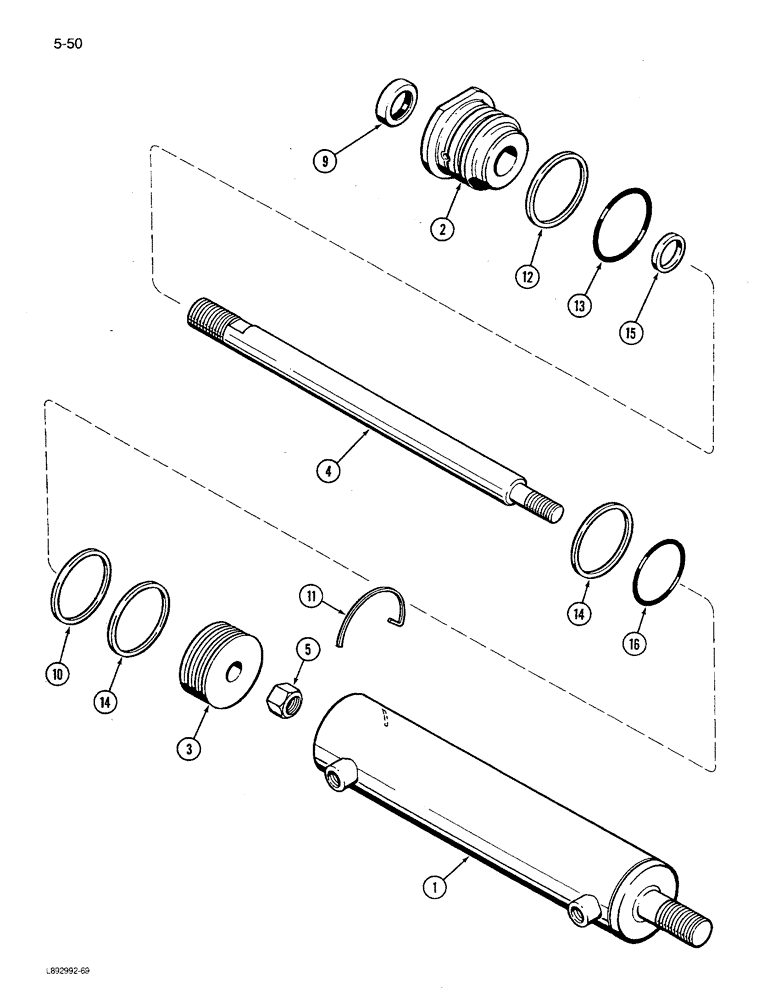

Запчасти Case IH 1680 (5-050) - STEERING CYLINDER ASSEMBLY (04) - STEERING

1958024C1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 16

1шт.

87337226R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (S/N JJC0045689 & AFTER) (NORTH AMERICA) ( 1/86 - 12/92 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1958024C1)

1шт.

2

1958020C1

GLAND

HEAD - cylinder, front

1шт.

3

1958021C1

PISTON

- cylinder

1шт.

4

127920C2

PISTON ROD

ROD - piston

1шт.

5

9411658

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NF, Grade 8

1шт.

1971520C1

SEAL KIT

SERVICE KIT - cylinder, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod, piston

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - back up, o-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - head, 2-1/8 x 2-1/2 inch, Class 5

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/16 x 2-1/4 inch

1шт.
