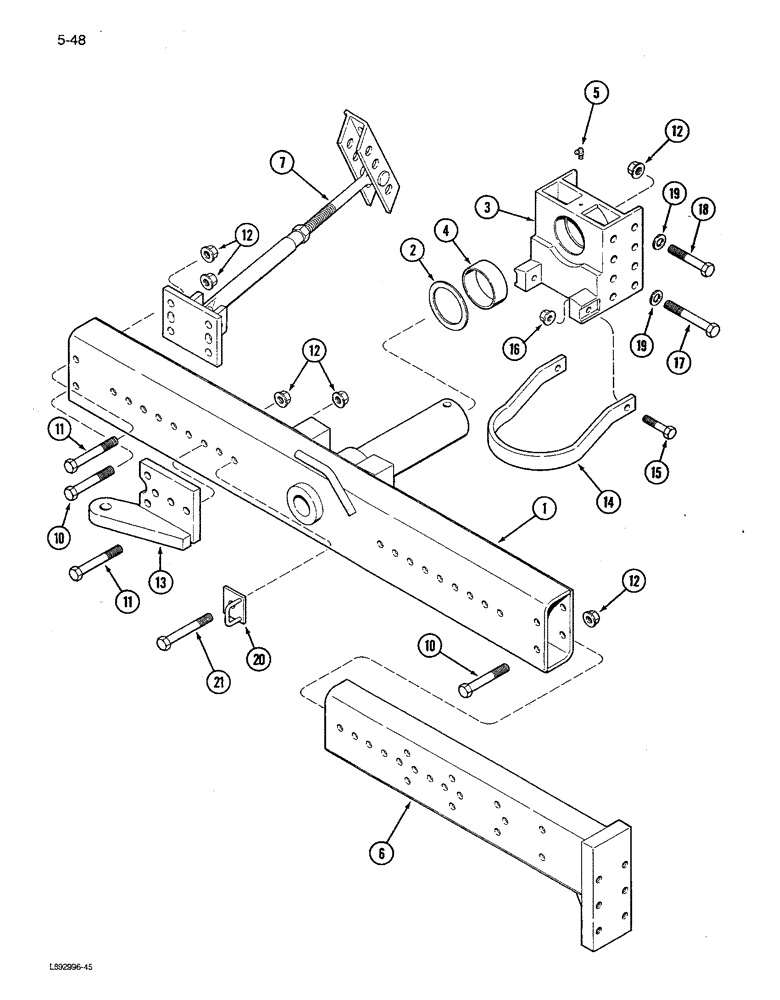

Запчасти Case IH 1680 (5-048) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE (04) - STEERING

1

1968991C1

AXLE

- adjustable, 108 to 144 inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- thrust, pivot shaft

4шт.

3

186599C93

SUPPORT

ASSEMBLY - pivot, axle, Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- pivot, axle

2шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

6

1968992C1

AXLE

EXTENSION - axle

2шт.

7

REF

INSTRUCTION

SUPPORT ASSEMBLY - stay, axle (See Figure 5-46)

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

11шт.

11

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

23шт.

13

1968993C1

SUPPORT

- steering bracket

1шт.

14

1979114C1

STRAP

- tow

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

20

1979120C1

GUIDE

BRACKET - hose, cylinder

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.
