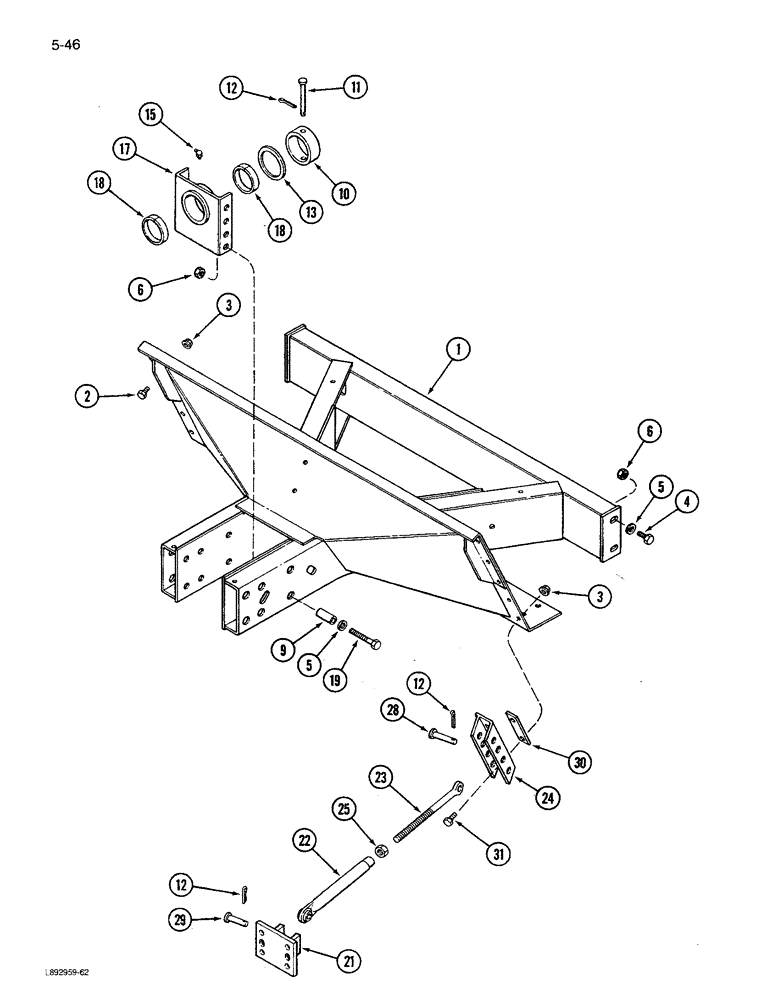

Запчасти Case IH 1680 (5-046) - STEERING AXLE SUPPORT, POWER GUIDE AXLE (04) - STEERING

1

1315447C2

SUPPORT

- axle, steering

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

14шт.

3

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC

14шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, Grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

8шт.

9

177748C1

SPACER

- support, 13/16 ID x 2-13/16 inch

12шт.

10

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- pivot, axle

1шт.

11

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN - head, 3/4 x 5-1/2 inch

1шт.

12

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

13

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- pivot, axle

1шт.

15

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

17

182792C93

SUPPORT ASSY.

SUPPORT ASSEMBLY - pivot, front, Includes: Ref. 18

1шт.

18

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - pivot, axle

2шт.

19

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

21

1970206C1

BRACKET

- rear, sta-bar

2шт.

22

181444C1

TIE-ROD,1" - 8

ROD ASSEMBLY - rear

2шт.

23

181442C3

EYEBOLT,1" - 8 x 381mm

ROD - front

2шт.

24

1541603C1

SUPPORT

- front, rod

2шт.

25

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

28

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

2шт.

29

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN - head, 7/8 x 3 inch

2шт.

30

1324514C1

BAR

- spacer, rod

2шт.

31

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

6шт.
