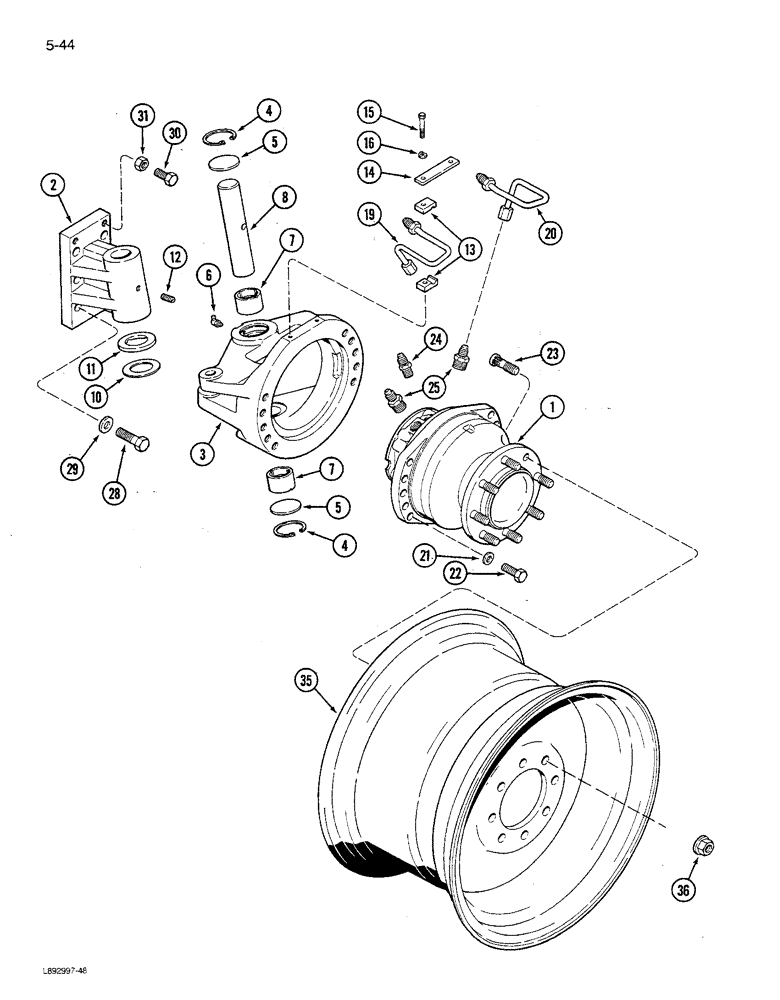

Запчасти Case IH 1680 (5-044) - WHEEL MOTOR AND KING PIN, POWER GUIDE AXLE (04) - STEERING

1

REF

INSTRUCTION

MOTOR ASSEMBLY - drive, axle (See Figures 5-56 or 5-58)

2шт.

2

1970138C1

HOUSING

- pin, king

2шт.

3

1970136C1

HOUSING

FRAME - support, motor right (Shown)

1шт.

3

1347195C1

FRAME

- support, motor right

1шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

3

1970354C1

FRAME

- Support, Motor, LH

1шт.

3

1347196C1

FRAME

- Support, Motor, LH

1шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

4

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

4шт.

5

41-40

PLUG,Exp, 2 1/2"

- expansion, 2-1/2 inch OD

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 90 degree 1/4-28 inch thread

4шт.

7

1970142C1

BUSHING

- pivot, bronze

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

- king

2шт.

10

1970381C1

THRUST WASHER

- thrust,steel

2шт.

11

1970382C1

THRUST WASHER

- thrust, bronze

4шт.

12

83-820

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

SCREW - hex socket head set, 1/2 NC x 1-1/4 inch

2шт.

13

1970148C1

CLAMP

- hydraulic, tube

8шт.

14

1970150C1

PLATE

- clamp

2шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

1347179C1

TUBE

ASSEMBLY - pressure, right rear left front

2шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

19

1970146C1

HYD TUBE

TUBE ASSEMBLY - pressure, right rear left front

2шт.

20

1970147C1

HYD TUBE

TUBE ASSEMBLY - pressure, left rear right front

2шт.

20

1347180C1

TUBE

ASSEMBLY - pressure, left rear right front

2шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

21

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8

1шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

22

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

16шт.

22

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 x 2 inch

16шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

23

1970151C1

STUD

- mounting, wheel

16шт.

24

1970395C1

FITTING

ADAPTER - straight, 18 mm - 1.5 x 1/2 inch thread

2шт.

25

1970396C1

FITTING

ADAPTER - straight, 22 mm - 2.0 x 1/2 inch thread

4шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

25538R1

WASHER

- flat, 13/16 x 1-1/2 x 7/32 inch

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

35

1970153C1

RIM

WHEEL - drive, steering (For 16.9 x 26 or 18.4 x 26 tire), axle

2шт.

35

1979866C1

WHEEL

- drive, steering (For 18.4 x 26 tire), axle

2шт.

Used on Rice combines P.I.N. JJC0047918 and after.

1шт.

36

905654R1

NUT

- mounting, hex, axle drive wheel

1шт.
