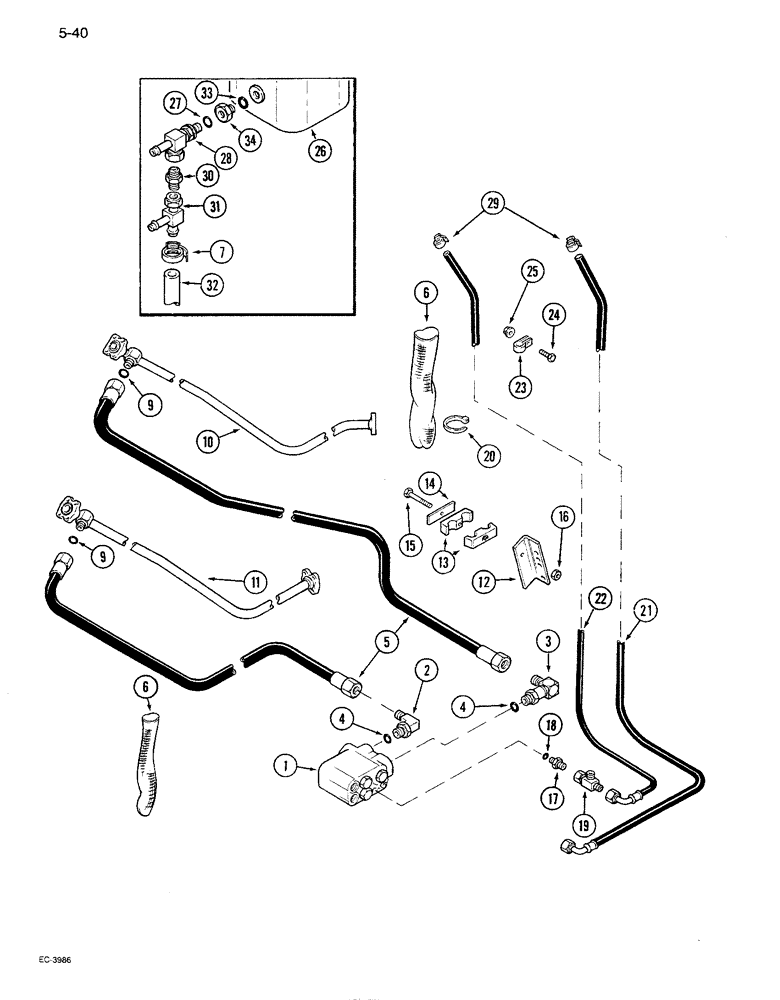

Запчасти Case IH 1680 (5-040) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, P.I.N. JJC0047918 & AFTER (04) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See Figures 5-52 or 5-54)

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 1-1/16-12 x 1-3/16-12 inch thread

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Adj 90º, 1 3/16"-12 x 1 1/16"-12 Sw, ORFS

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

2шт.

5

1979171C1

HOSE,19.05mm ID x 2165mm L

ASSEMBLY - valve pressure, 2165 mm

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - hose, nylon 1219 mm long

2шт.

7

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

10

REF

INSTRUCTION

TUBE ASSEMBLY - forward pressure (See Figure 6-12 or 16)

1шт.

11

REF

INSTRUCTION

TUBE ASSEMBLY - reverse pressure (See Figure 6-12 or 16)

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

2шт.

14

1324469C1

PLATE

- clamp, hose

2шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

2шт.

16

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4-16 x 9/16 inch thread

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 3/4-16 inch thread

1шт.

20

702093C1

CABLE TIE

STRAP - cable tie

5шт.

21

1979706C1

HOSE

ASSEMBLY - case flush, 3660 mm long

1шт.

22

1979706C1

HOSE

ASSEMBLY - case drain, 3660 mm long

1шт.

23

L50062

SHIN

CLAMP - hose retaining

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

26

REF

INSTRUCTION

RESERVOIR - (See Figure 8-4)

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch O.D.

1шт.

28

1979760C1

TEE

- return 1 x 1 inch

1шт.

29

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, No. 4, type F (Includes screw)

2шт.

30

1343558C1

VALVE

ASSEMBLY - check, 1 inch, 15 psi

1шт.

31

1979655C1

TEE

1шт.

32

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir, 267 mm (Order 364361C1 and, Serial Range: cut-length)

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D.

1шт.

34

1979767C1

ADAPTER

ADAPTOR-reducer

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
