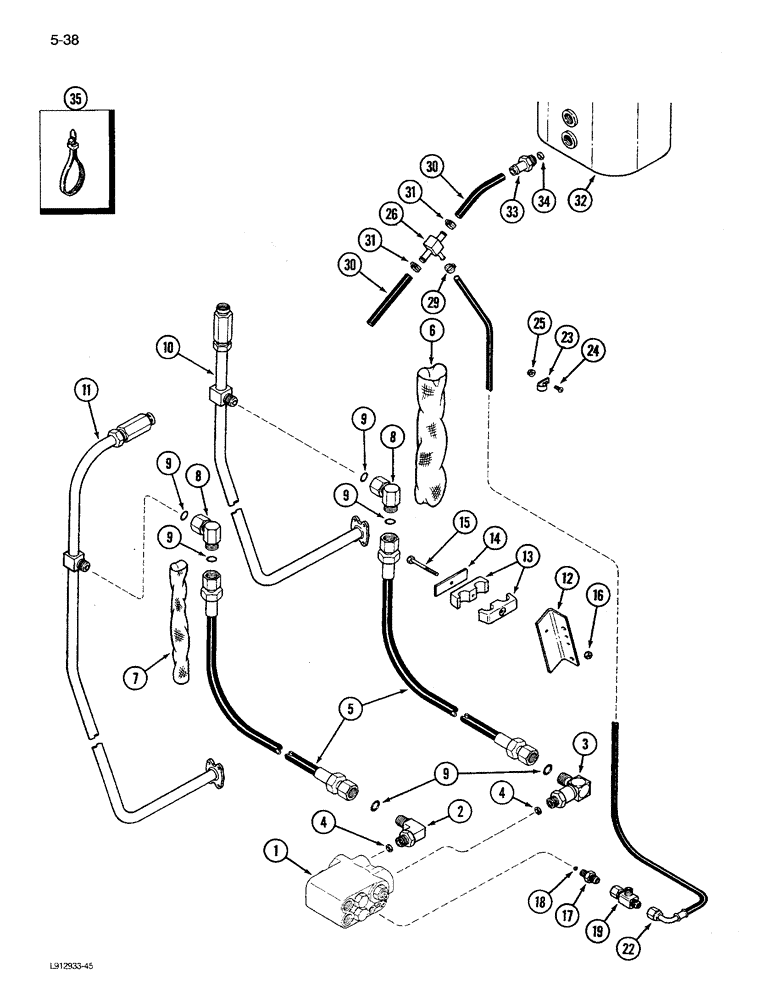

Запчасти Case IH 1680 (5-038) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0047918 (04) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See Figure 5-52 or 5-58)

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 1-1/16-12 x 1-3/16-12 inch thread

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Adj 90º, 1 3/16"-12 x 1 1/16"-12 Sw, ORFS

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

5

1979162C1

HOSE ASSY.

HOSE ASSEMBLY - pressure, valve 2350 mm

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - hose, nylon 1219 mm long

1шт.

7

1970109C1

HOSE

SLEEVE - hose, nylon 1219 mm long

1шт.

8

1979168C1

ELBOW

- 90 degree special

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

10

1979173C1

HYD TUBE

TUBE ASSEMBLY - pressure, forward drive

1шт.

11

1979172C1

TUBE ASSY.

TUBE ASSEMBLY - pressure, reverse drive

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

2шт.

14

1324469C1

PLATE

- clamp, hose

2шт.

15

25678R1

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 8

- hex, 5/16 NC x 3-1/4 inch, Grade 8

2шт.

16

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4-16 x 9/16 inch thread

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 3/4-16 inch thread

1шт.

22

1957282C2

HYDRAULIC HOSE

Drain

1шт.

23

299413C1

CLAMP

- hose, closed coated

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

26

1957288C1

FITTING

TEE - return hose, 1 x 1 x 1/2 inch barb end

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw #4, 0.25/0.62 Type F Worm

1шт.

30

REF

INSTRUCTION

HOSE - return, 215 mm (Order 364361C1 and, Serial Range: cut-length)

2шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

4шт.

32

REF

INSTRUCTION

RESERVOIR - hydraulic (See Figure 8-2)

1шт.

33

470420R11

FITTING

ADAPTER - hydraulic, hex thread x hose barb end

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

35

702093C1

CABLE TIE

STRAP - tie

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
